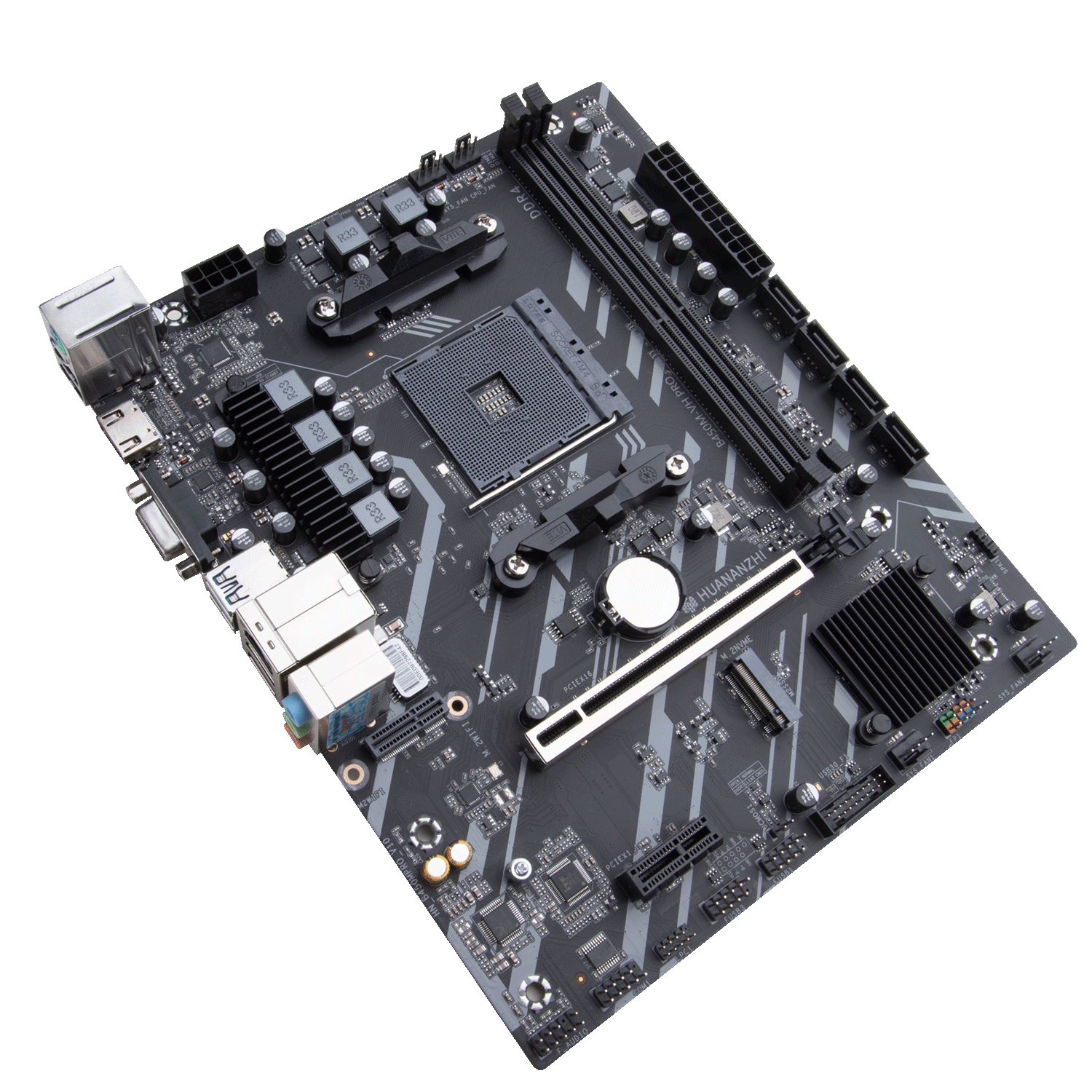

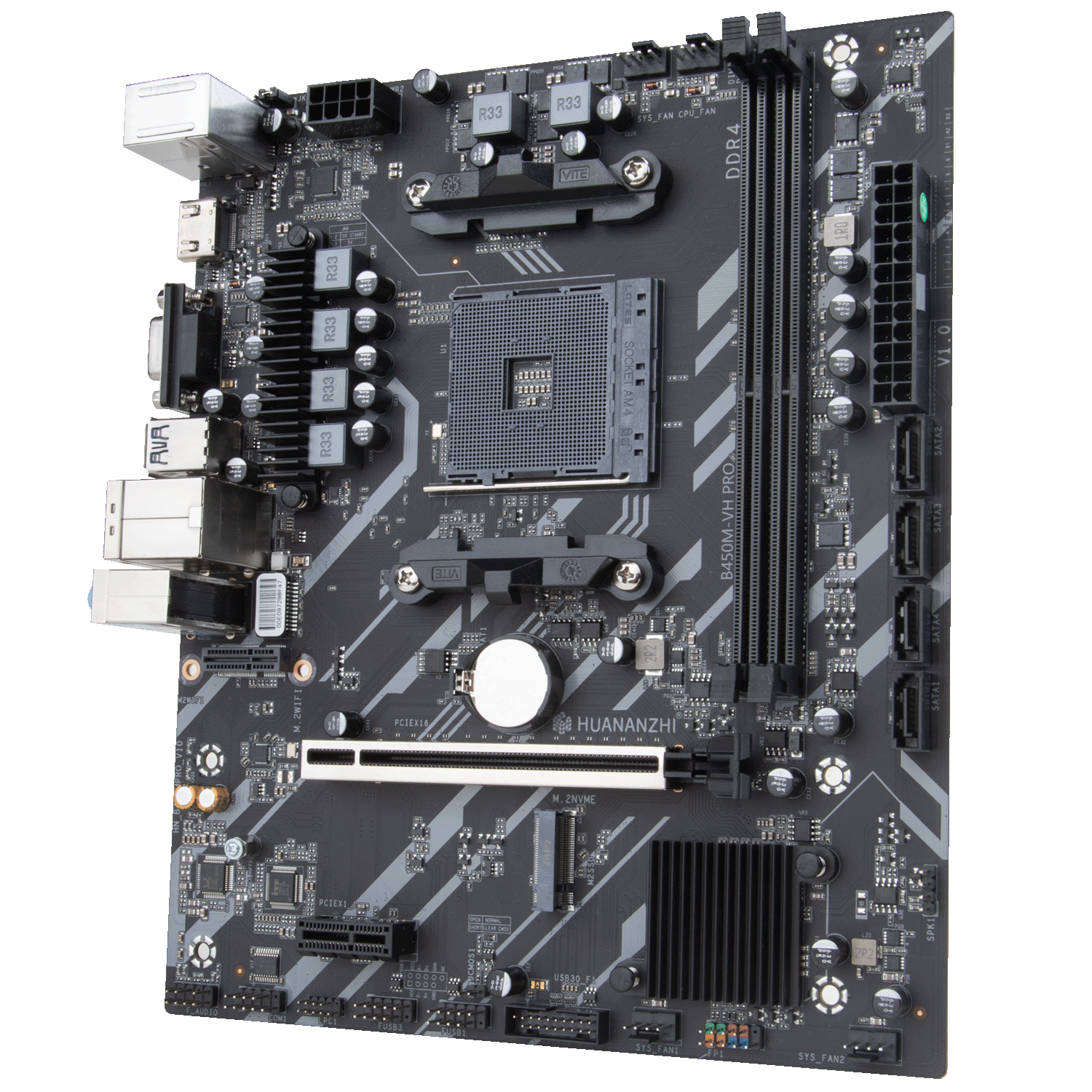

Huananzhi B450M-VH PRO V1.0 AMD Motherboard
Huananzhi B450M-VH PRO V1.0 AMD Motherboard
Huananzhi B450M-VH PRO V1.0 AMD Motherboard
Huananzhi B450M-VH PRO V1.0 AMD Motherboard
Visit HUANANZHI

Huananzhi B450M-VH PRO V1.0 AMD Motherboard

৳ 8,800.00 ৳ 12,000.00
  • 0.0 Ratings

  • 0 Reviews

  • In Stock

· supports AMD AM4 platform processor
· supports AMD Ryzen1-5 gen processor / Athlon processor
· supports dual-channel DDR4 3600/3200/3000/2933/2666/2400/2133MHz specification memory
· 4 x SATA 3.0 6Gbps HDD port
· 1 x PCI Express 3.0 x16 slot, 1 x PCI Express 2.0 x1 slot
· 1 x M.2 2280 NVME PCIE X4 3.0&NGFF
· 4 x USB3.2 Gen1, 1 x HDMI, 1 x VGA port

Delivery Details

  • Fast and reliable delivery across Bangladesh
  • Authentic products & secure payment
Model B450M-VH PRO V1.0
chipset AMD B450 series
CPU Socket supports AMD AM4 platform processor supports AMD Ryzen1-5 gen processor / Athlon processor
memory slot(s) 2 x DDR4 memory slot(s)
Memory Standard supports dual-channel DIMM DDR4 3600/3200/3000/2933/2666/2400/2133MHz(depends on CPU) max support 64GB
Storageport 4 x SATA 3.0 6Gbps HDD port
Expansion Slots 1 x PCI Express 3.0 x16 slot, 1 x PCI Express 2.0 x1 slot
expansionpor 1 x M.2 2280 (NVME PCIE X4 3.0&NGFF) 1 vertical mount(s) M.2 WIFI Port / Only supports PCIE protocol in IO port area
Onboard Audio Realtek HD Audio ALC897
Onboard LAN Realtek Gigabit LAN RTL8111H
Power Supplyport 24PIN+8PIN
Fan Headers 1 x CPU_FAN header can temperature control adjust 1x SYS_FAN header can temperature control adjust 2 x SYS_FAN1/2 header
Power Phases 6 -phase power supply 1 on 2 under MOS strong -ization power supply Layout
PCB Layers 4 Layer
Motherboard Specifications 220*190MM M-ATX form factor

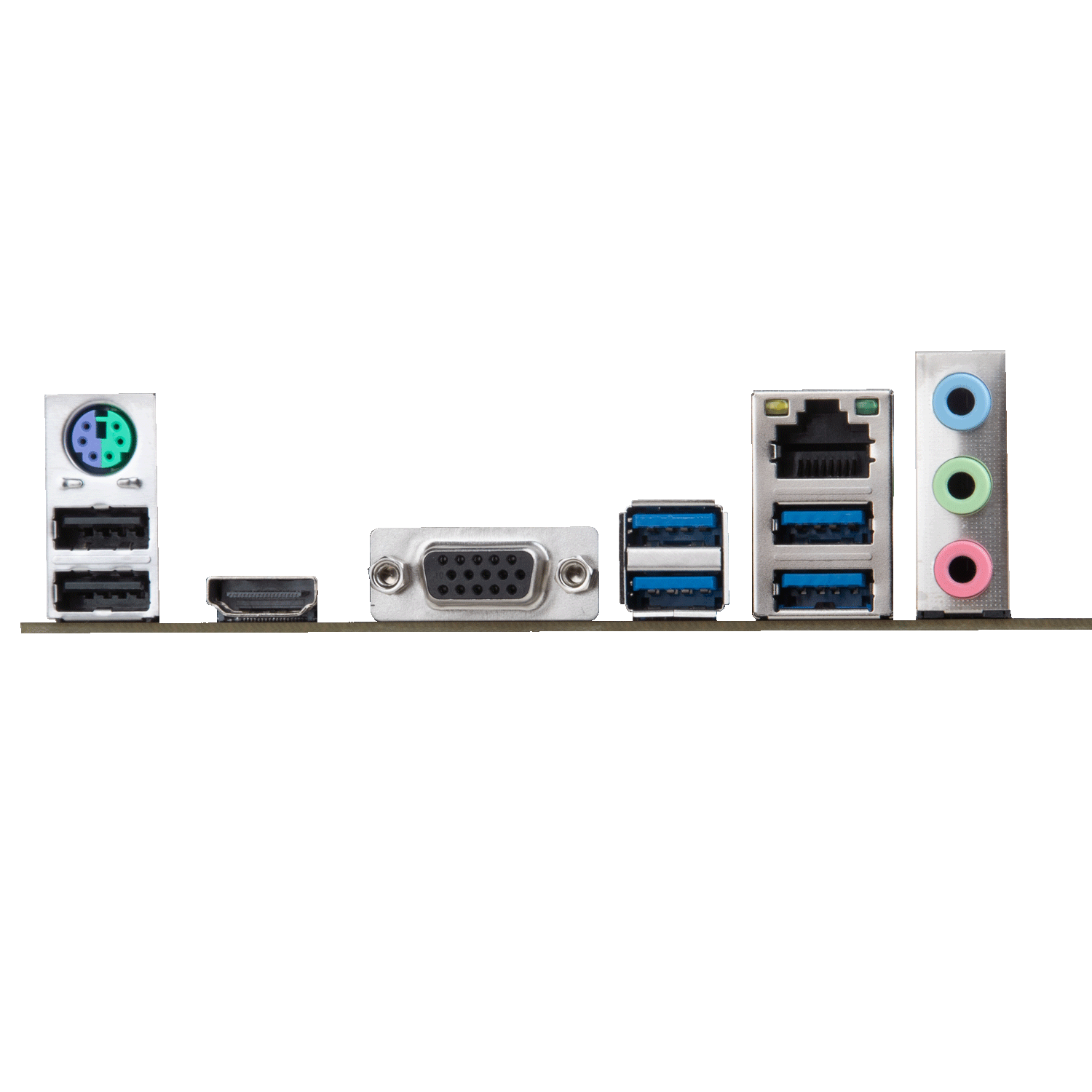

Rear Panelport 4 x USB3.2 Gen1,2 x USB2.0,1 x PS/2 Keyboard/Mouse,1 x HDMI 1 x VGA,1 x RJ45 LAN,1 x 3-hole audio 1 vertical mount(s) WIFI Reserved
Front Panelport 1xUSB3.2 Gen1Pin,2xUSB2.0Pin,1xfront audioPin,1xJKBPin,1xLPC Pin,1xSPK buzzer Pin,1xpower/reset Pin
Supported OS Windows10 Windows11 supports AC recovery/scheduled boot/WOL / IPV4/IPV6 diskless boot /CFAN temperature control
BIOS AMI UEFI BIOS
Package Contents 1/ motherboard 1/SATA SATA data cable 1/IO I/O shield 1/ Manual
