Specifications of HUANANZHI A520M-VH Motherboard

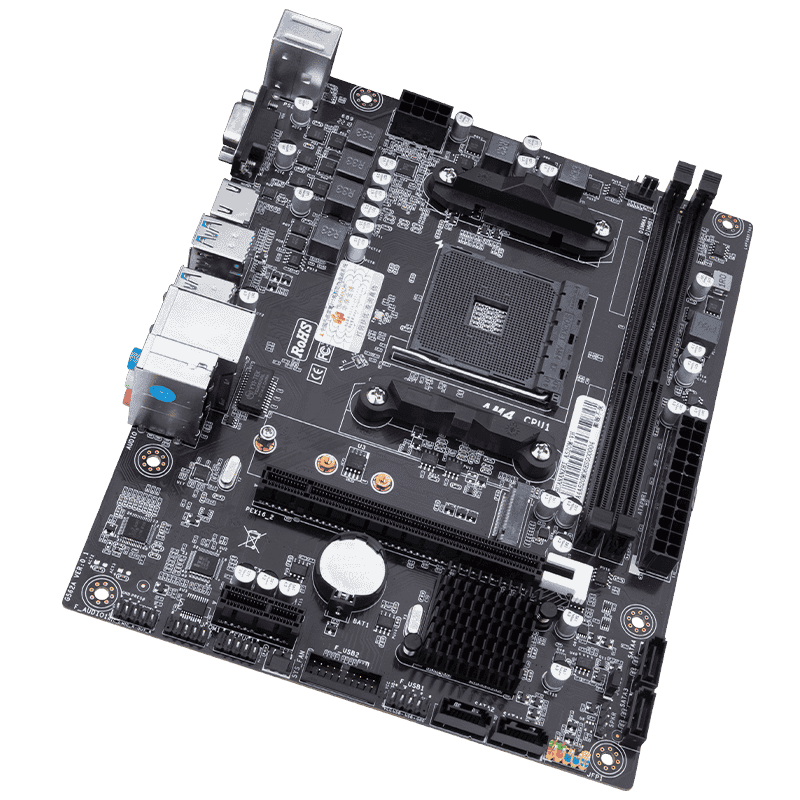

HUANANZHI A520M-VH Motherboard

HUANANZHI A520M-VH Motherboard

Experience reliable and efficient performance with the HUANANZHI A520M-VH, designed for AMD Ryzen processors and built to power up your everyday computing and gaming needs.

Key Features:

Chipset: AMD A520 Series

CPU Socket: Supports AMD AM4 processors (Ryzen 3000/4000/5000 series and 4000G/5000G series)

Memory Support:

2 × DDR4 memory slots

Supports dual-channel DDR4 3200/2933/2666/2400MHz

Maximum memory capacity: 64GB

Storage Interface:

4 × SATA 3.0 ports (6Gbps)

Expansion Slots:

1 × PCI Express 3.0 x16 slot

1 × PCI Express 3.0 x1 slot

Expansion Interface:

1 × M.2 2280 slot (PCIe 3.0 x4, NVMe SSD, up to 32Gb/s)

Audio & Networking:

Audio: Realtek High-Fidelity Audio for premium sound quality

Network: Realtek Gigabit Ethernet for fast, stable internet connection

Power & Cooling:

Power Interface: 24-Pin + 8-Pin connectors

Fan Headers:

1 × CPU fan connector

1 × System fan connector

Power Supply: 6-phase stable power design

PCB Layers: 4-layer PCB for enhanced durability

Dimensions:

215mm × 174mm (M-ATX Form Factor)

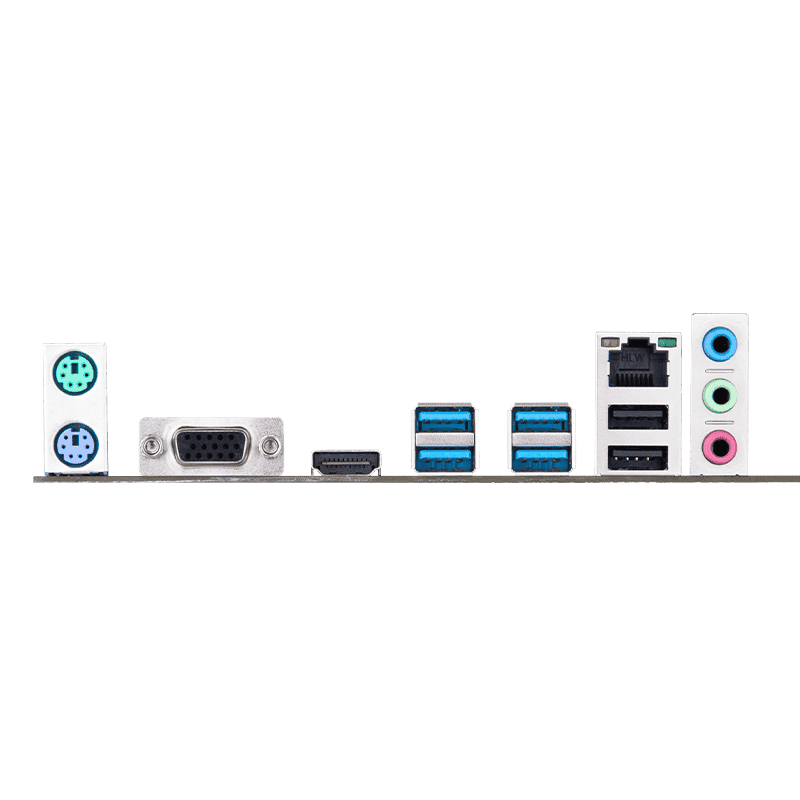

Rear I/O Ports:

1 × VGA port

1 × HDMI 2.0 port

2 × USB 2.0 ports (480Mbps)

2 × USB 3.2 ports (5Gbps)

1 × RJ45 Gigabit Ethernet port

1 × 3-hole audio jack

Front Panel Connectors:

1 × USB 2.0 PIN header (480Mbps)

1 × USB 3.2 PIN header (5Gbps)

1 × Front audio PIN header

1 × Power on/Restart PIN

1 × CMOS PIN

1 × COM PIN

1 × Debug PIN

Supported Operating Systems:

Windows 7

Windows 10

Supports special features like incoming call power-on, timed power-on, wake-on-LAN, and network card start.

BIOS:

AMI BIOS

What's in the Box:

1 × HUANANZHI A520M-VH Motherboard

1 × SATA data cable

1 × Warranty card
