Specifications of HUANANZHI B550E-B Motherboard

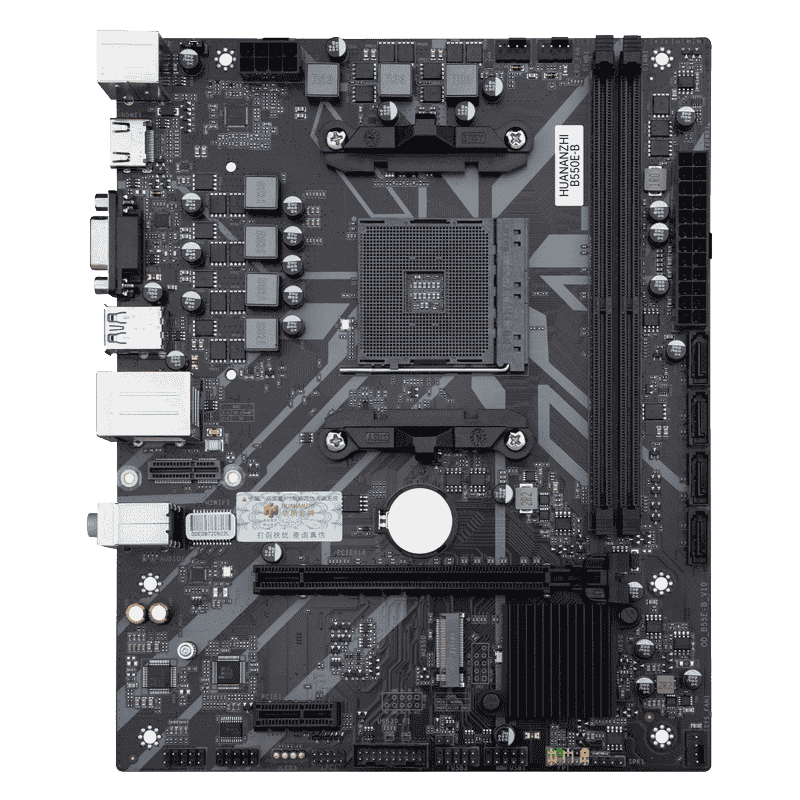

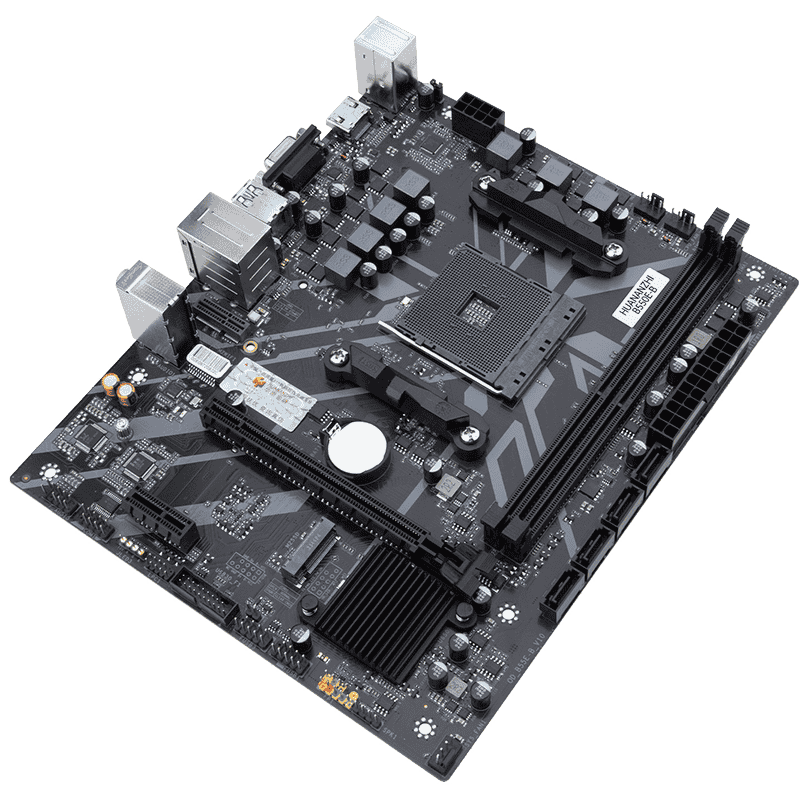

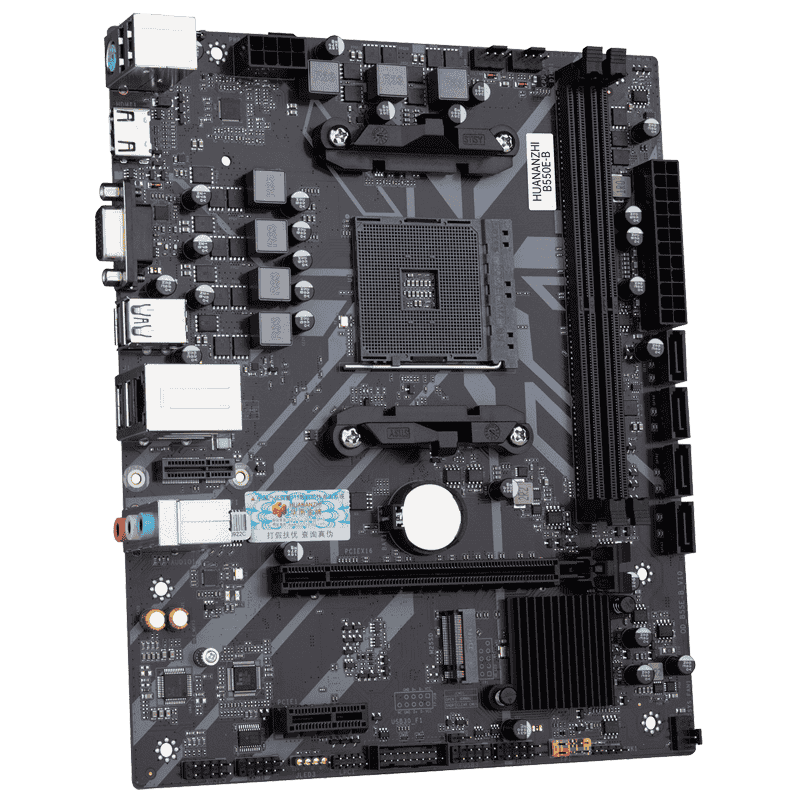

HUANANZHI B550E-B Motherboard

HUANANZHI B550E-B Motherboard

Unlock powerful performance with the HUANANZHI B550E-B, engineered for AMD AM4 processors and designed to deliver exceptional speed, stability, and expandability for gaming, content creation, or everyday use.

Key Features:

Main Chipset: AMD B550 / PRO 565

CPU Socket: Supports AMD AM4 processors (Ryzen 3000/4000/4000G/5000/5000G series)

Memory Support:

2 × DDR4 memory slots

Supports DDR4 2133/2400/2666/3000(OC)/3200(OC)/3600(OC) MHz

Maximum memory capacity: 64GB

Storage Interface:

4 × SATA 3.0 ports (6Gbps)

Expansion Slots:

1 × PCIe 4.0 x16 slot

1 × PCIe x1 slot

Expansion Interface:

1 × M.2 slot (supports PCIe 4.0 x4 NVMe SSD and SATA 3.0 SSD)

1 × M.2 WiFi interface (supports PCIe protocol)

Audio & Networking:

Audio: 3.5mm jacks, 5.1 channel surround sound

Network: Gigabit Ethernet for fast and stable internet connections

Power & Cooling:

Power Interface: 24-Pin + 8-Pin connectors

Fan Headers:

1 × CPU intelligent temperature control fan connector

2 × System fan connectors

Dimensions:

220mm × 180mm (Micro-ATX Form Factor)

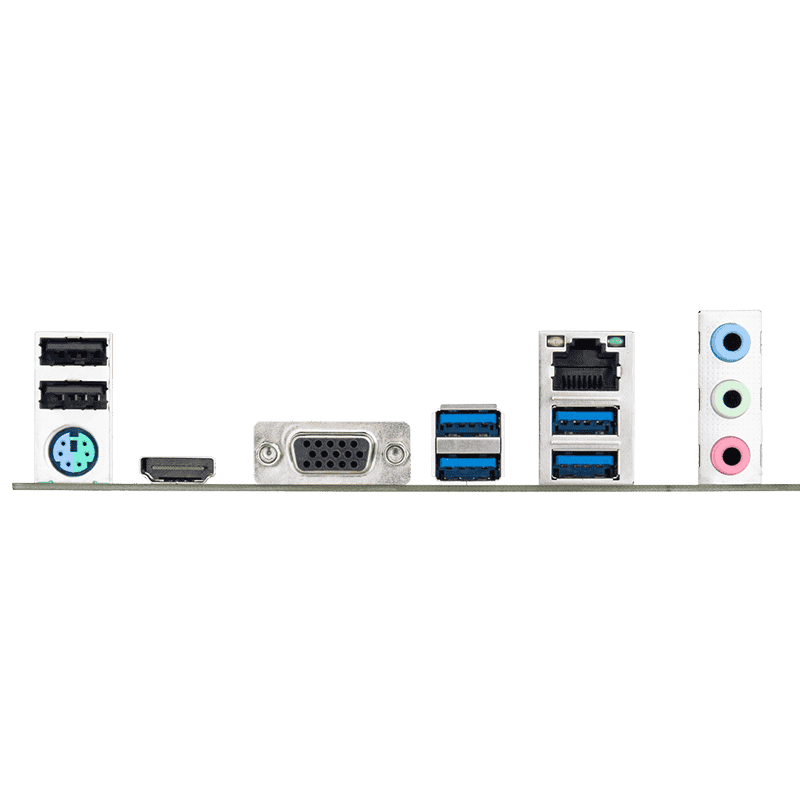

Rear I/O Ports:

1 × PS/2 port

4 × USB 3.2 Gen 1 ports

2 × USB 2.0 ports

1 × HDMI port

1 × VGA port

1 × RJ45 Gigabit Ethernet port

1 × 3-hole audio jack

Front Panel Connectors:

2 × USB 2.0 PIN headers

1 × USB 3.2 Gen 1 PIN header

1 × RGB light pin (4-Pin 12V) for customizable lighting

Supported Operating Systems:

Windows 10

Windows 11

BIOS:

AMI EFI BIOS

What's in the Box:

1 × HUANANZHI B550E-B Motherboard

1 × SATA data cable

1 × Warranty card
