Specifications of HUANANZHI B650M-B PLUS AMD AM5 Motherboard

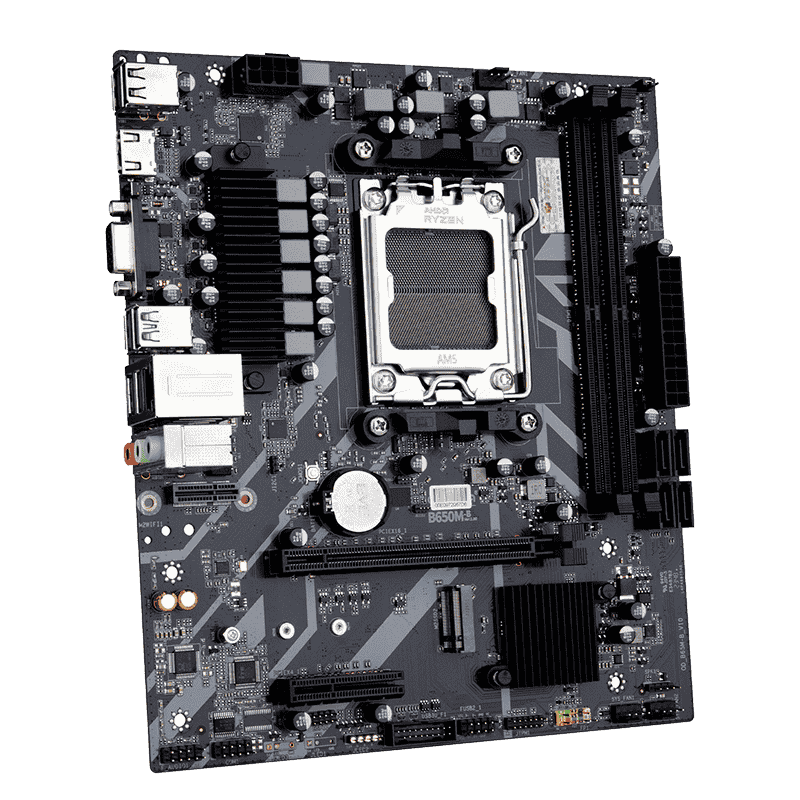

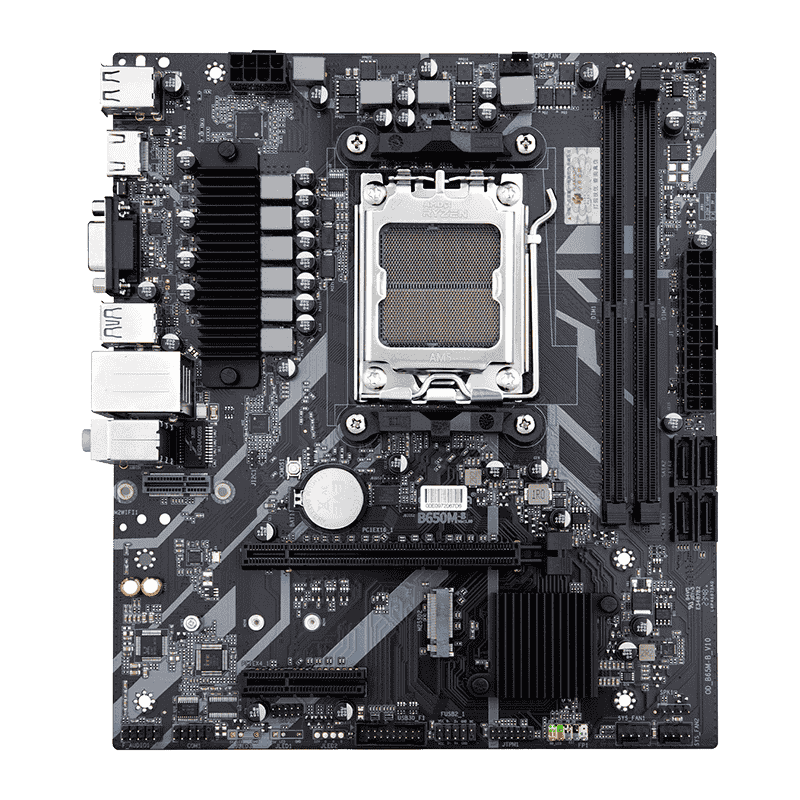

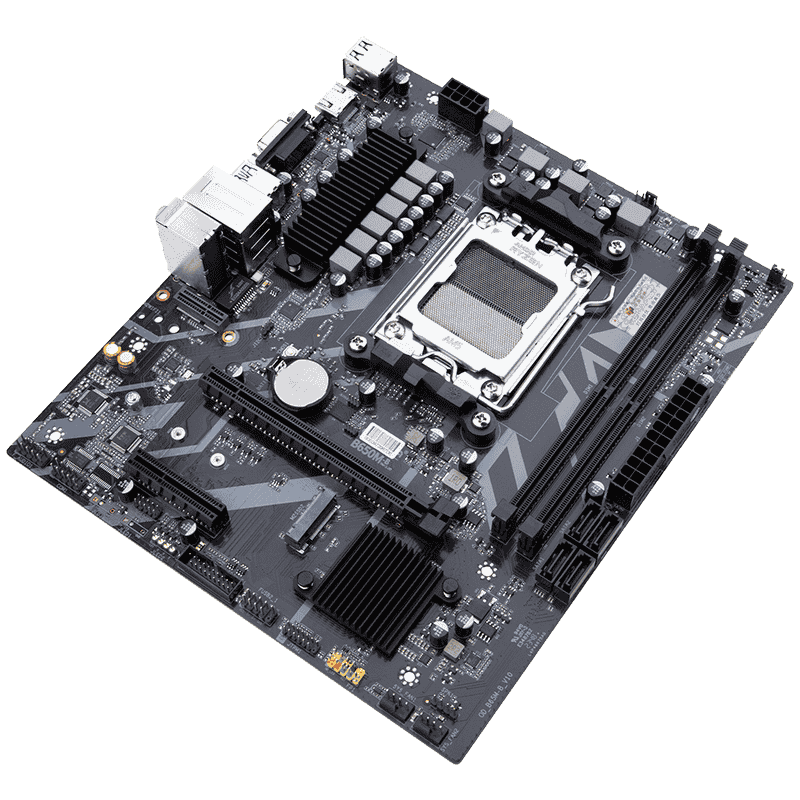

HUANANZHI B650M-B PLUS AMD AM5 Motherboard

HUANANZHI B650M-B Motherboard

Power up your next-generation AMD build with the HUANANZHI B650M-B, designed to deliver high-speed performance, DDR5 memory support, and modern connectivity in a compact Micro-ATX form factor.

Key Features:

Main Chipset: AMD B650

CPU Socket: Supports AMD AM5 socket Ryzen 7000 series processors

Memory Support:

2 × DDR5 memory slots

Supports DDR5 4800/5200/5600(OC)/6000(OC) MHz

Maximum memory capacity: 96GB

Supports EXPO overclocking for enhanced performance

Storage Interface:

4 × SATA 3.0 ports (6Gbps)

Supports RAID 0/1/10 configurations

Expansion Slots:

1 × PCIe 4.0 x16 slot

1 × PCIe x4 slot

Expansion Interface:

1 × M.2 slot supporting PCIe 4.0 x4 NVMe SSD

Audio & Networking:

Audio: 3.5mm interfaces for clear, high-fidelity sound

Network: Realtek Gigabit Network Chip

Supports M.2 WiFi interface (PCIe protocol) for wireless upgrades

Power & Cooling:

Power Interface: 24-Pin + 8-Pin connectors

Fan Headers:

1 × Intelligent temperature control CPU fan connector

2 × System fan connectors

Dimensions:

225mm × 195mm (Micro-ATX Form Factor)

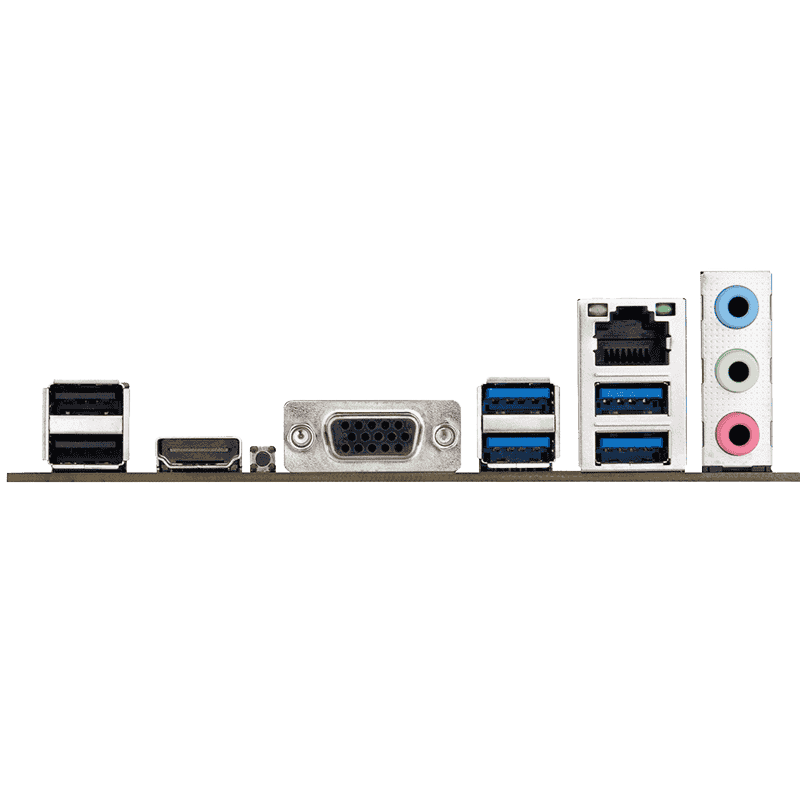

Rear I/O Ports:

4 × USB 3.2 Gen 1 ports

2 × USB 2.0 ports

1 × HDMI port

1 × VGA port

1 × RJ45 Gigabit Ethernet port

1 × 3-hole audio jack

Front Panel Connectors:

1 × USB 2.0 PIN header

1 × USB 3.2 Gen 1 PIN header

1 × RGB lamp pin (4-Pin 12V) for lighting customization

Supported Operating Systems:

Windows 10

Windows 11

BIOS:

AMI EFI BIOS

What's in the Box:

1 × HUANANZHI B650M-B Motherboard

1 × SATA data cable

1 × Warranty card
