Specifications of HUANANZHI B660-D4 Motherboard

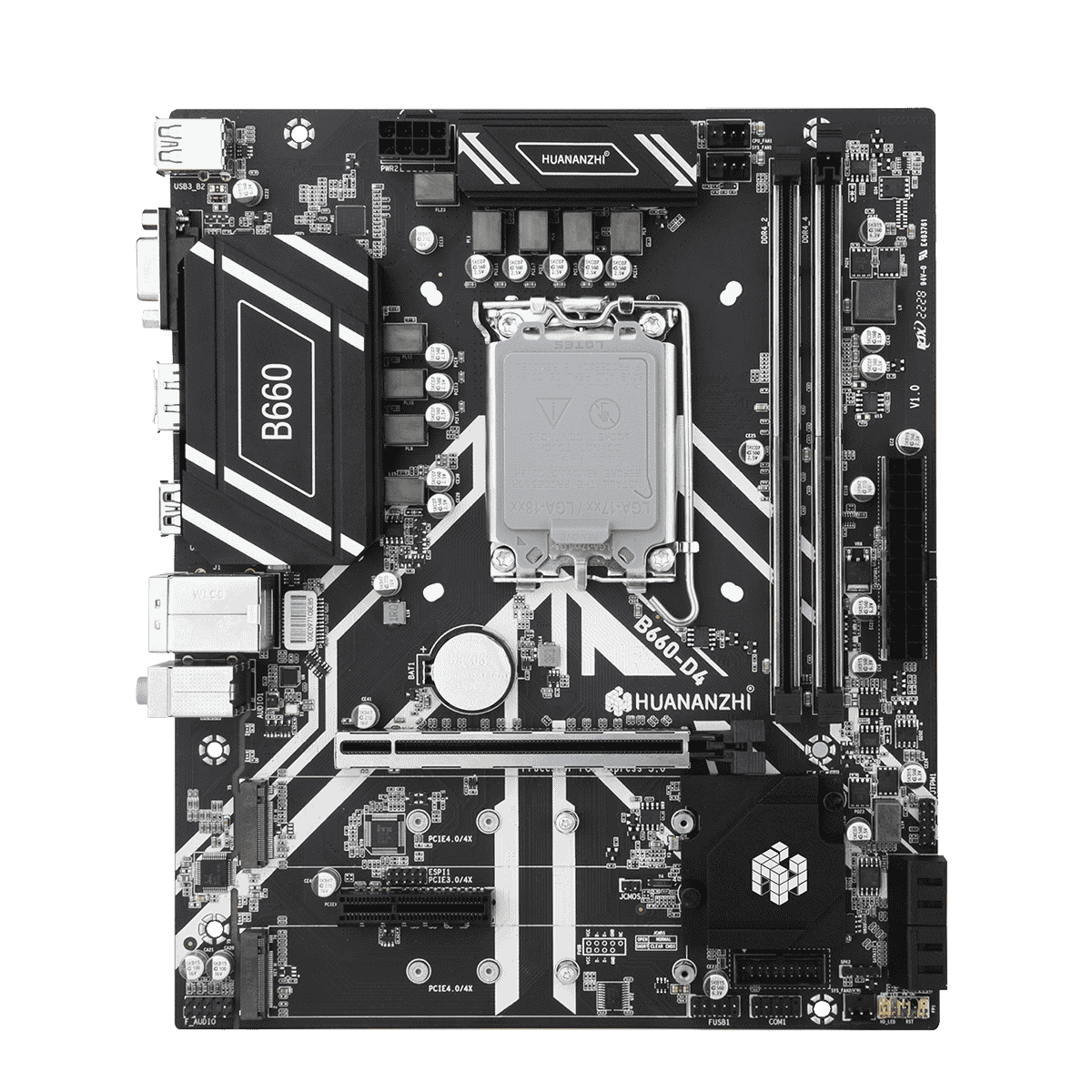

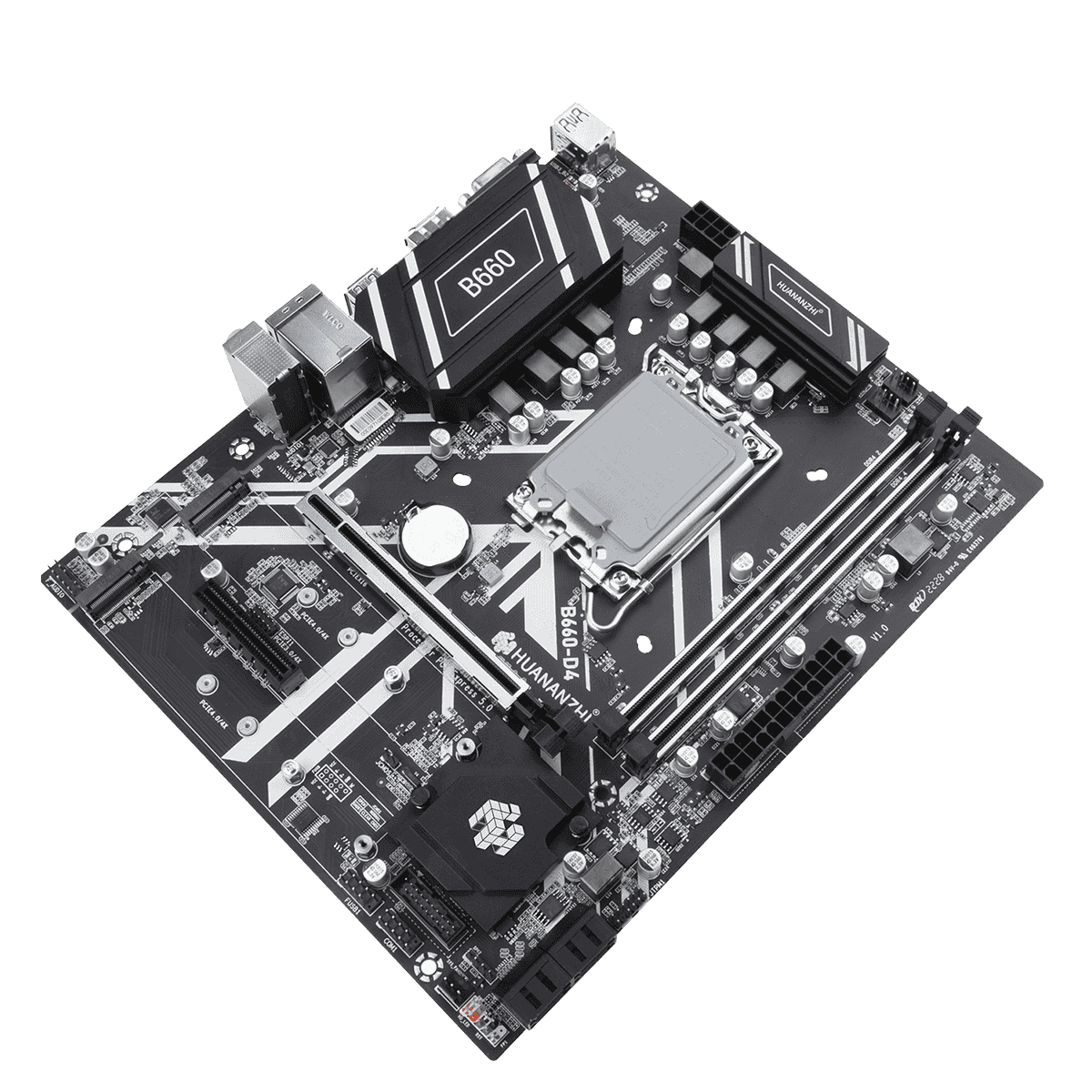

HUANANZHI B660-D4 Motherboard

HUANANZHI B660-D4 Motherboard

Power up your build with the HUANANZHI B660-D4, a high-performance motherboard designed for Intel’s 12th and 13th generation processors, delivering next-level speed, stability, and expandability.

Key Features:

CPU Socket: Supports Intel 12th and 13th Gen LGA1700 platform processors

Memory Support:

2 × DDR4 memory slots

Supports dual-channel DDR4 3200/2933/2666/2400MHz (depends on CPU / XMP supported)

Maximum memory support: 64GB

Storage Interface:

4 × SATA 3.0 ports (6Gbps)

Expansion Slots:

1 × PCI Express 4.0/5.0 x16

1 × PCI Express 3.0 x4

Expansion Interface:

2 × M.2 22110 NVMe PCIe 4.0 slots for ultra-fast storage

Audio & Networking:

Audio: Realtek High Fidelity Audio

Network Card: Realtek Gigabit network card RTL8111GUS

Power & Cooling:

Power Interface: 24-Pin + 8-Pin connectors

Cooling Pins:

1 × CPU_FAN PIN

2 × SYS_FAN PIN

Power Supply Design: 8-phase power supply for enhanced stability and performance

PCB: 4-layer high-quality PCB

Dimensions:

235mm × 195mm (Micro-ATX Form Factor)

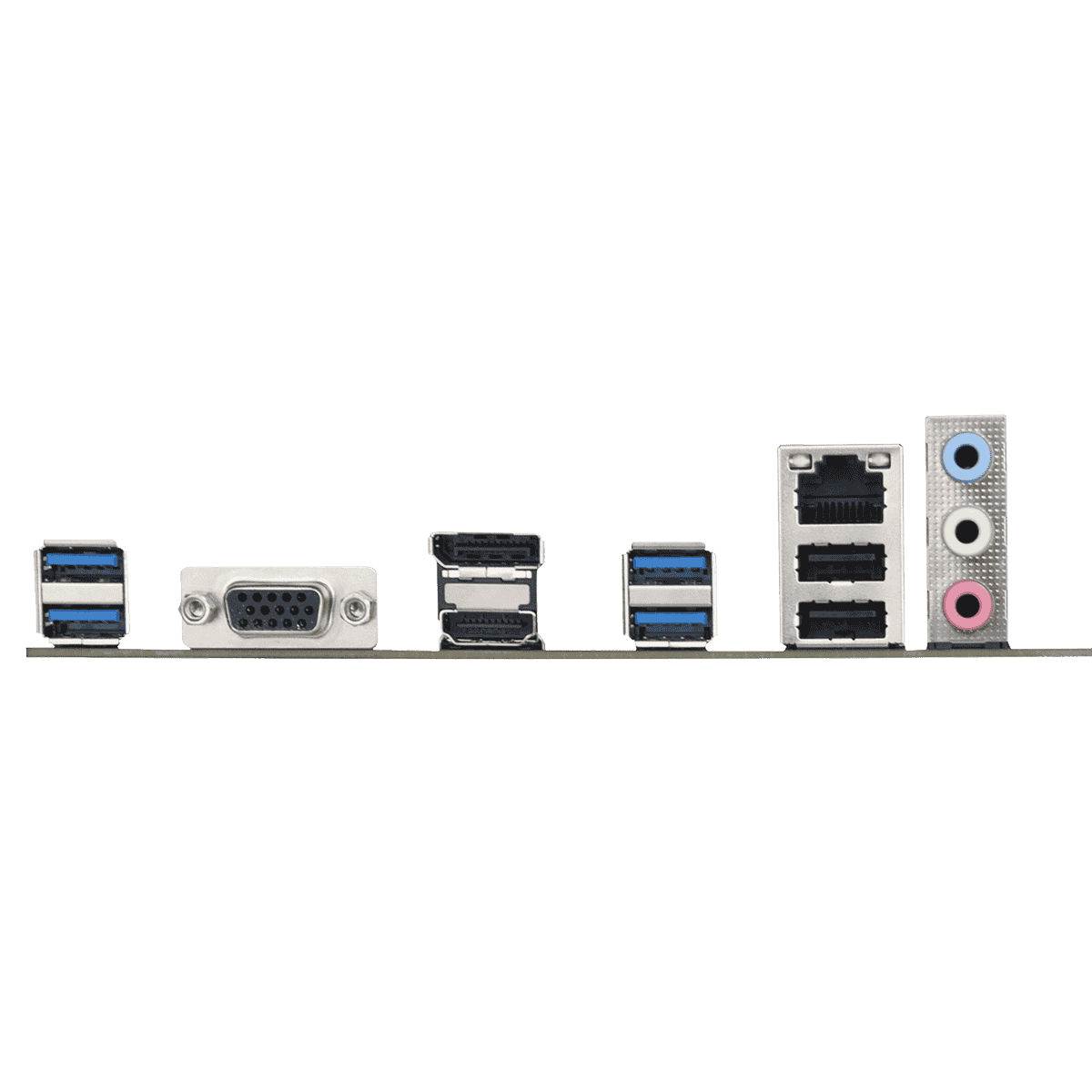

Rear I/O Ports:

4 × USB 3.0 ports

2 × USB 2.0 ports

1 × VGA port

1 × HDMI port

1 × DisplayPort (DP)

1 × RJ45 Gigabit LAN port

1 × 3-hole audio interface

Front Panel Connectors:

1 × USB 2.0 PIN header

1 × USB 3.0 PIN header

1 × Front audio PIN header

1 × COM PIN header

1 × TPM PIN header

Supported Operating Systems:

Windows 10

Windows 11

BIOS:

AMI UEFI Graphics BIOS

What's in the Box:

1 × HUANANZHI B660-D4 Motherboard

1 × SATA data cable

1 × Warranty card
