Specifications of HUANANZHI B760M-D5 PLUS Motherboard

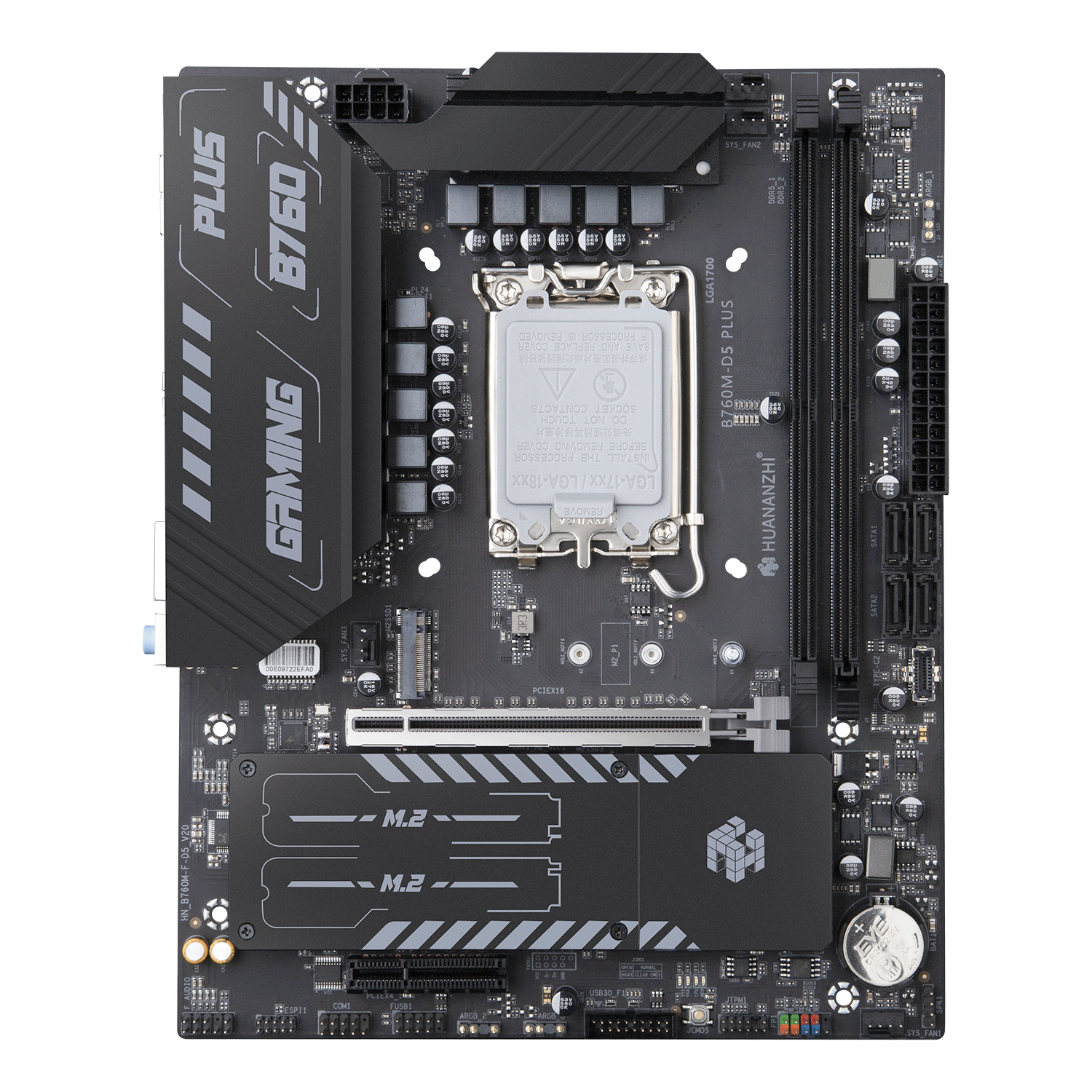

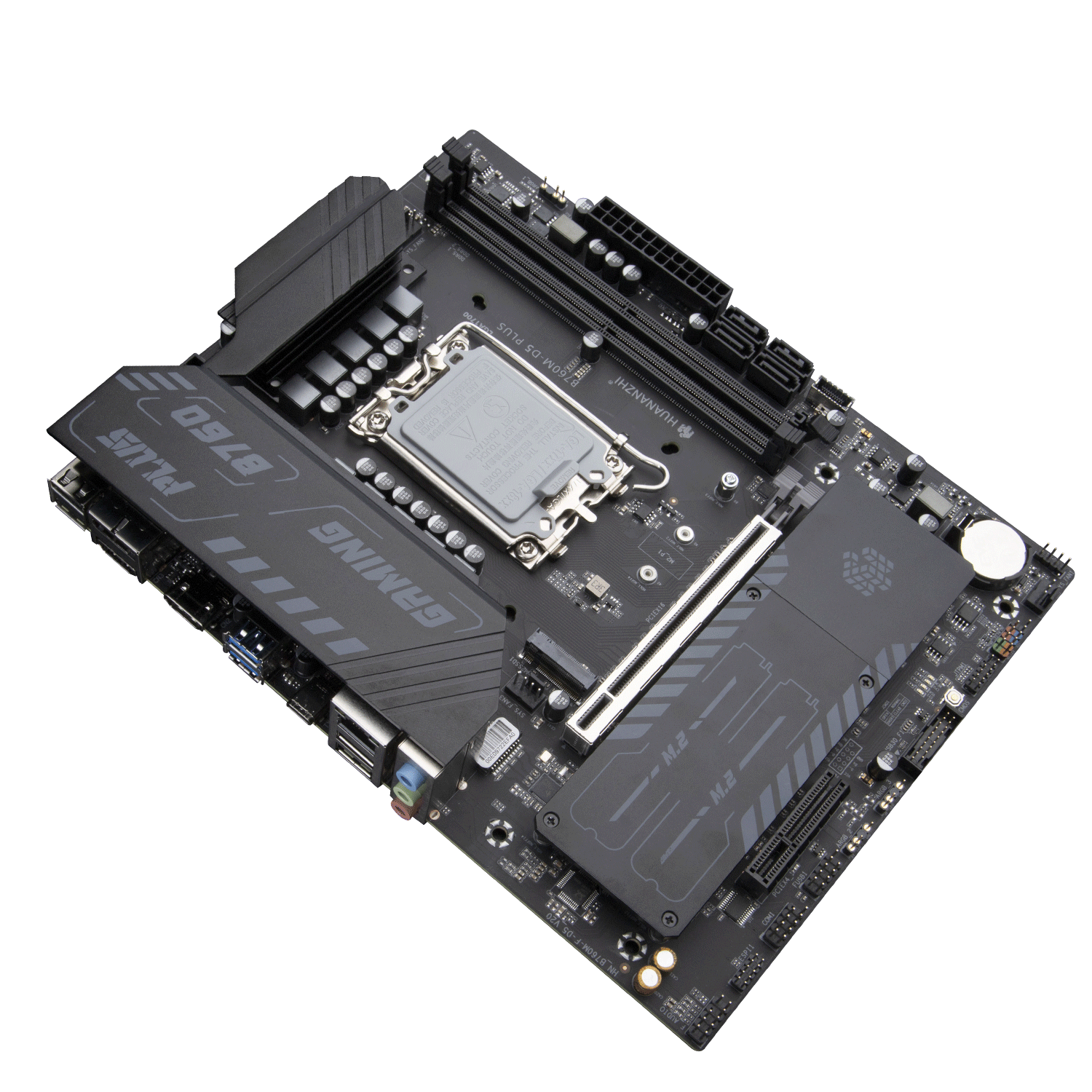

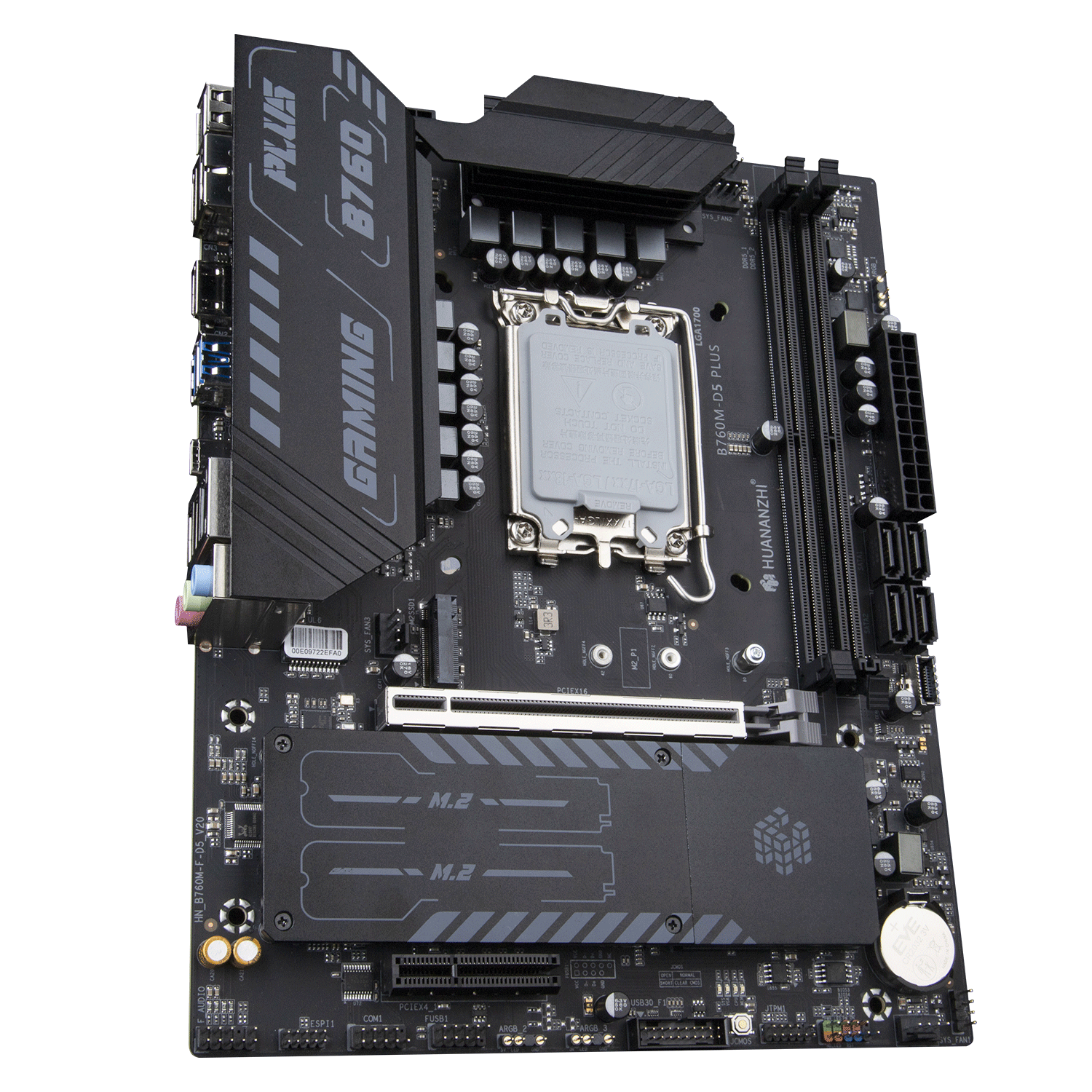

HUANANZHI B760M-D5 PLUS Motherboard

HUANANZHI B760M-D5 PLUS Motherboard—Powerful Performance, Future-Ready Compatibility

Upgrade your PC build with the **HUANANZHI B760M-D5 PLUS Motherboard**, engineered for speed, efficiency, and next-gen compatibility. Powered by the Intel B760 chipset, this high-performance motherboard supports Intel 12th, 13th, and 14th Gen Core processors with the LGA1700 socket, delivering cutting-edge capabilities for gamers, content creators, and professionals.

⚡ Key Features:

🔹 High-Speed DDR5 Memory Support
Equipped with 2 x DDR5 slots, it supports up to 96GB of dual-channel DDR5 memory with blazing speeds of 6800MHz and downward. Experience ultra-fast multitasking and seamless performance.

🔹 Advanced Storage & Expansion
Store more and load faster with 4x SATA 3.0 ports and 3x M.2 2280 NVMe PCIe 4.0 slots. An additional M.2 slot for WiFi ensures easy wireless upgrades. Expansion is a breeze with PCIe 4.0 x16 and PCIe 3.0 x4slots.

🔹 **Superior Audio & Networking**
Enjoy crystal-clear sound with **Realtek ALC897 High Fidelity Audio**, and stay connected with **Realtek 2.5G Gigabit Ethernet (RTL8125BG)** for faster and more reliable networking.

🔹 **ARGB & Cooling Ready**
Customize your rig with **3x 5V ARGB headers**, controllable via official HUANANZHI software. Keep your system cool with **1x CPU_FAN and 2x SYS_FAN headers** for efficient thermal management.

🔹 **Rich Connectivity**
Comprehensive rear I/O with **4x USB 2.0**, **2x USB 3.2 Gen2 (10Gb/s)**, **1x USB Type-C (5Gb/s)**, **2x HDMI 2.1**, **1x DP 1.4**, and a **3-jack audio interface**. Includes **front panel Type-C**, **TPM**, and **debugging indicators** for added functionality.

🔹 **Robust Build & Power Delivery**
Designed with a **6-layer PCB** and **10-phase power supply**, ensuring stable performance for high-end CPUs and extended system longevity.

#### 🔧 Technical Specs at a Glance:

- Form Factor**: M-ATX (235x185mm)
- Chipset**: Intel B760
- Socket**: LGA1700
- RAM**: 2 x DDR5 (Max 96GB, up to 6800MHz)
- Storage**: 4x SATA3.0, 3x M.2 NVMe (PCIe 4.0), 1x M.2 WiFi
- Expansion**: 1x PCIe 4.0 x16, 1x PCIe 3.0 x4
- Audio**: Realtek ALC897
- LAN**: Realtek 2.5G RTL8125BG
- Power Connectors**: 24-pin + 8-pin
- BIOS**: AMI UEFI Graphics BIOS
- System Support**: Windows 10 & 11, Wake-on-LAN, Timed Power-On, S3 Sleep

📦 Box Includes:

- 1 x HUANANZHI B760M-D5 PLUS Motherboard
- 1 x SATA Data Cable
- 1 x Warranty Card
