Specifications of HUANANZHI H311-VHC PLUS Motherboard

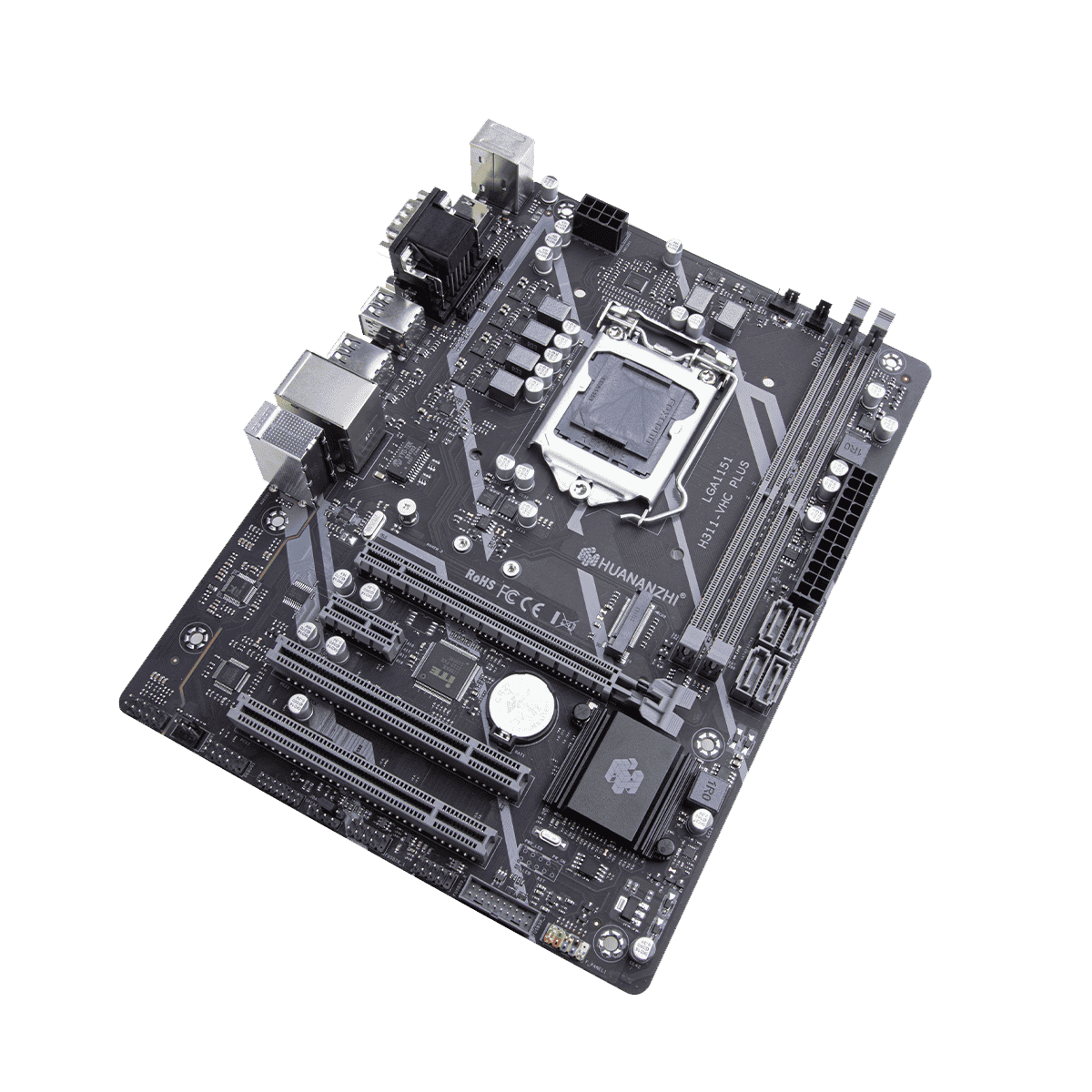

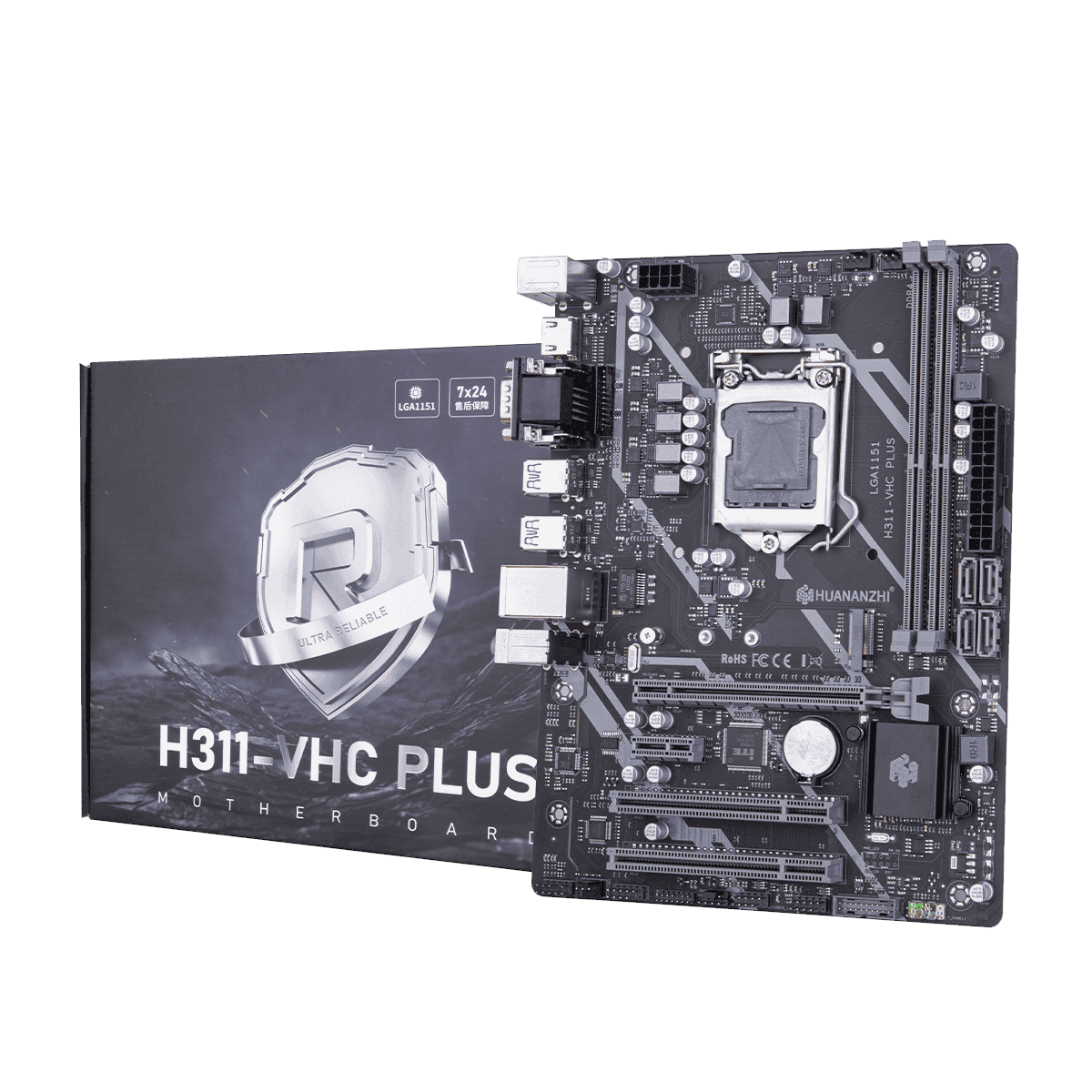

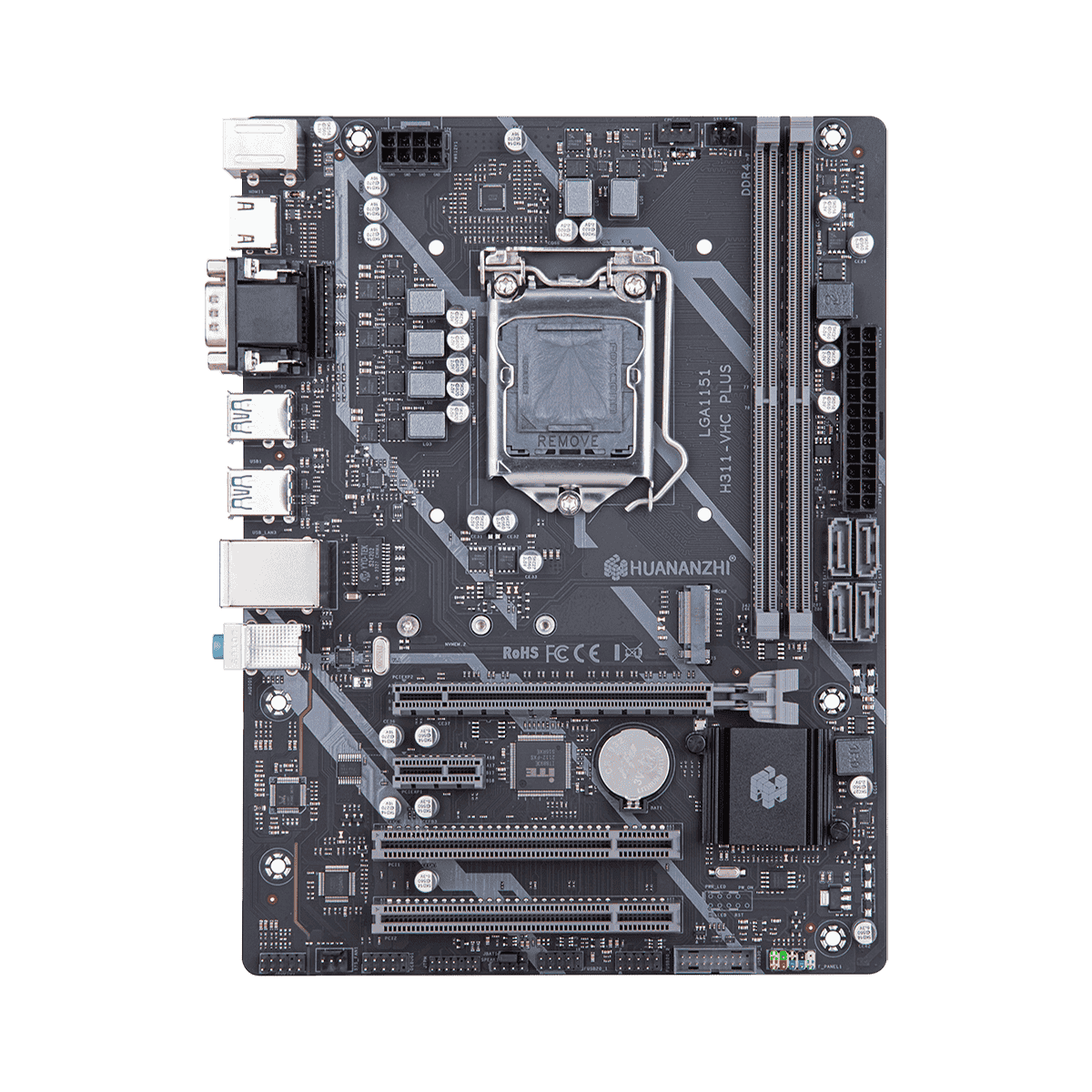

HUANANZHI H311-VHC PLUS Motherboard

HUANANZHI H311-VHC PLUS Motherboard

Build a reliable, cost-effective system with the HUANANZHI H311-VHC PLUS Motherboard, designed for Intel LGA1151 platform processors, offering a wide range of connectivity and expansion options to power your everyday tasks and more.

Key Features:

Chipset: Intel 100 Series Chipset

CPU Socket: Supports Intel LGA1151 platform processors

Memory Support:

2 × DDR4 memory slots

Supports dual-channel DDR4 2666/2400/2133/1866 MHz (depends on CPU)

Maximum memory support: 32GB

Storage Interface:

4 × SATA 3.0 ports (6Gbps)

Expansion Slots:

1 × PCIe 3.0 x16

1 × PCIe 2.0 x1

2 × PCI slots

Expansion Interface:

1 × M.2 2280 NVMe PCIe X4 2.0 slot for fast storage

Audio & Networking:

Audio: Realtek High Fidelity Audio

Network Card: Gigabit Ethernet

Power & Cooling:

Power Interface: 24-Pin + 8-Pin connectors

Cooling Pins:

1 × CPU_FAN PIN

2 × SYS_FAN PIN

Power Supply Design: 6-phase power supply for stability

PCB: 4-layer durable PCB

Dimensions:

240mm × 180mm (Micro-ATX Form Factor)

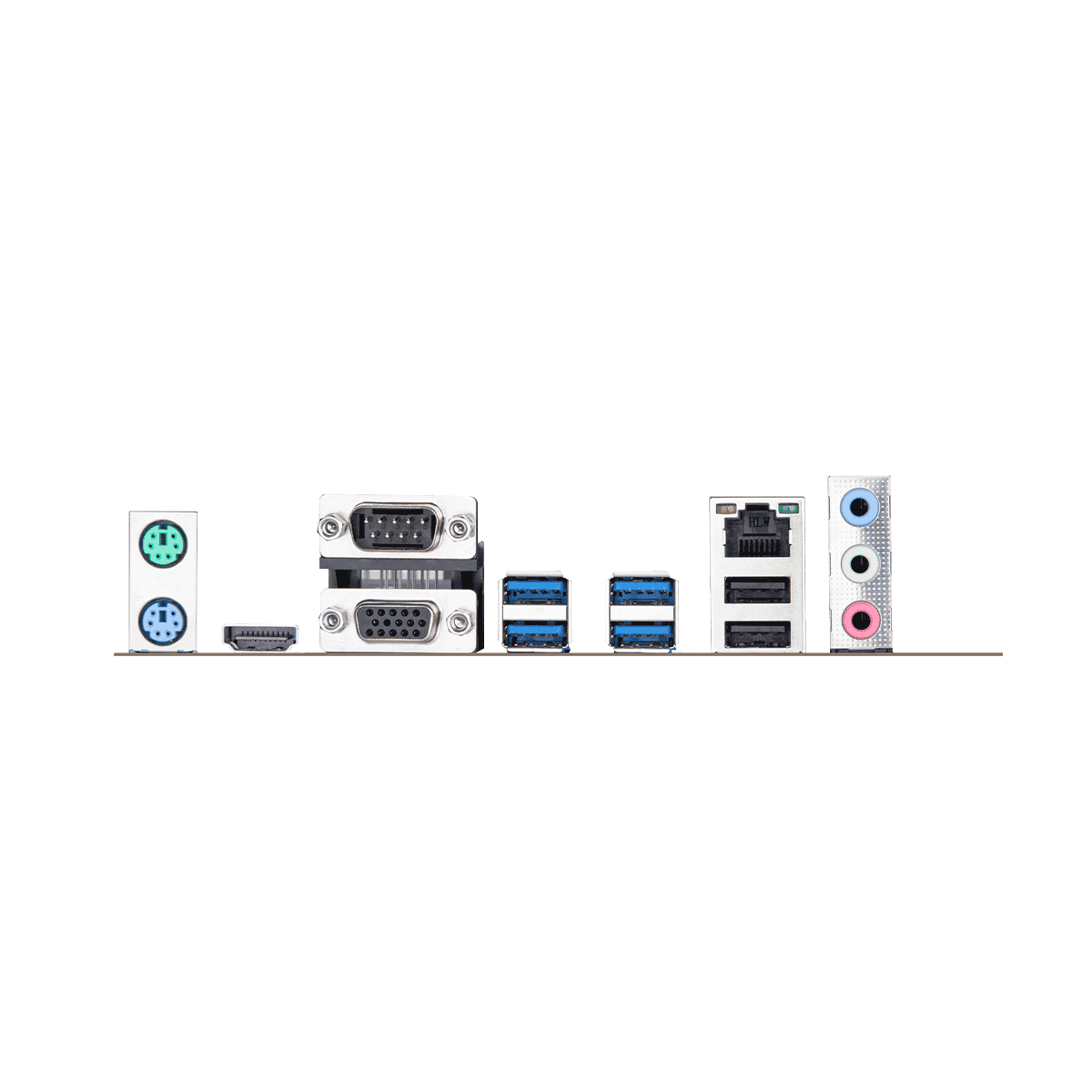

Rear I/O Ports:

4 × USB 3.0 ports

2 × USB 2.0 ports

1 × VGA port

1 × HDMI 2.0 port

1 × COM port

1 × RJ45 Gigabit Ethernet port

1 × 3-hole audio interface

1 × PS/2 port

Front Panel Connectors:

2 × USB 2.0 PIN header

1 × USB 3.0 PIN header

1 × Front audio PIN header

1 × Debug PIN header

1 × JBAT BIOS PIN header

1 × TPM PIN header

1 × SPEAK PIN header

1 × Power On/Restart PIN header

Supported Operating Systems:

Windows 7

Windows 10

Windows 11 (with advanced power management features like AC Power Loss restore, Wake-on-LAN, and PXE Boot)

BIOS:

AMI UEFI BIOS

What's in the Box:

1 × HUANANZHI H311-VHC PLUS Motherboard

1 × SATA data cable

1 × Warranty card

1 × I/O panel shield
