Specifications of HUANANZHI H510M-K Motherboard

HUANANZHI H510M-K Motherboard

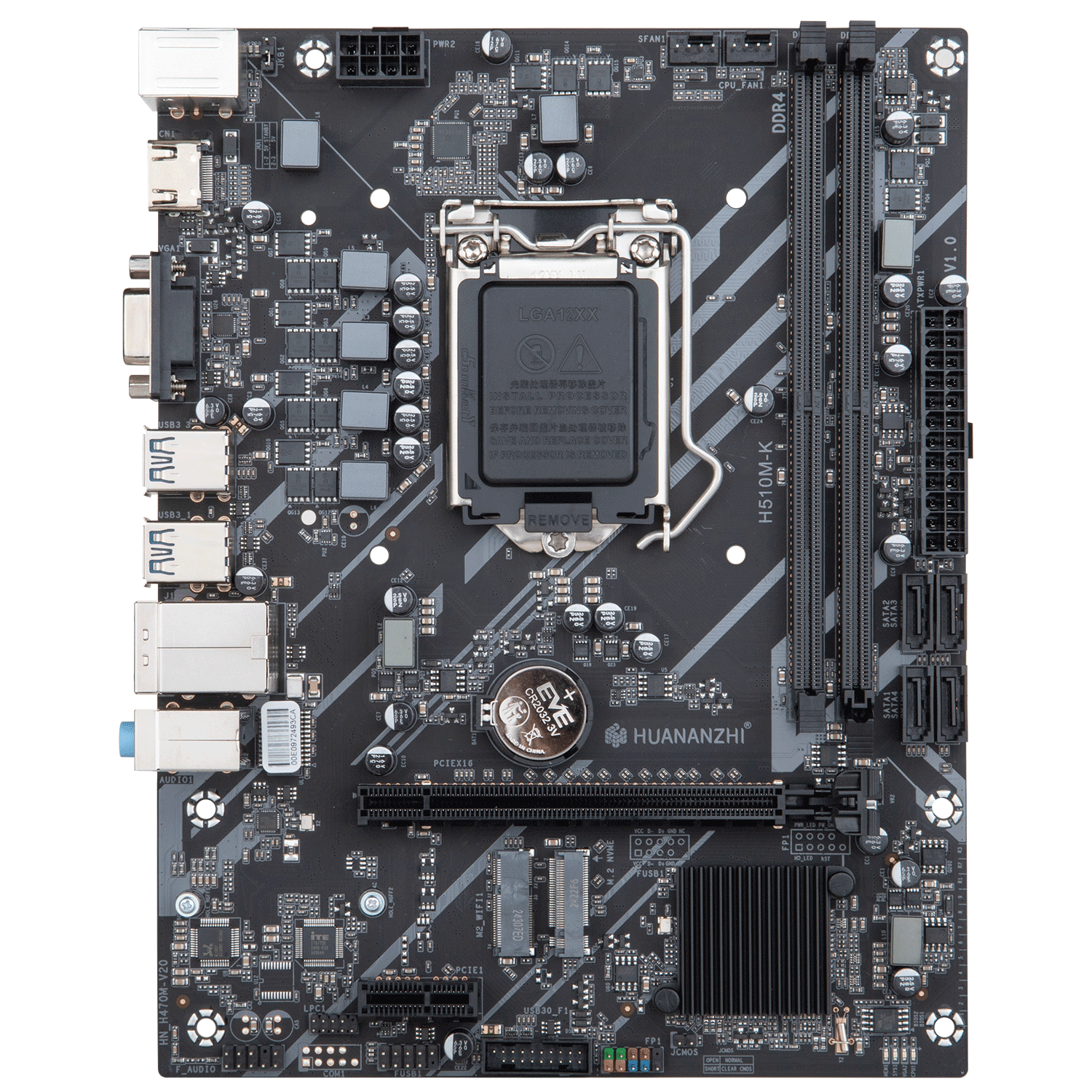

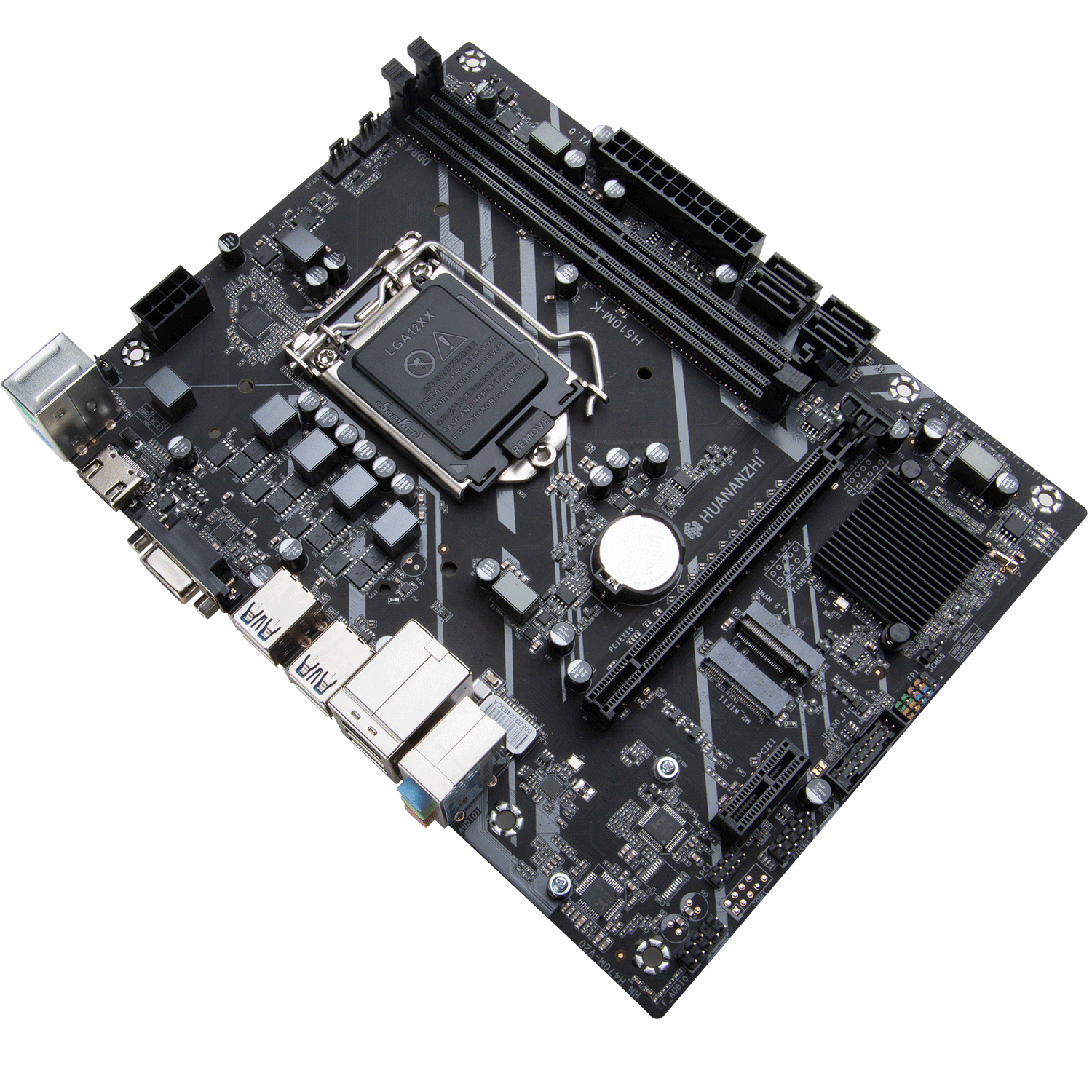

HUANANZHI H510M-K Motherboard – Compact M-ATX Board for Intel 10th/11th Gen CPUs with High-Speed Storage & Connectivity

The HUANANZHI H510M-K Motherboard delivers solid performance and versatility for mid-range desktop builds, offering compatibility with Intel 10th/11th Gen Core, Pentium, and Celeron processors. Designed for users looking for a reliable and efficient platform, this M-ATX motherboard is ideal for both home and office use, supporting DDR4 memory, high-speed storage, and an array of expansion options in a compact form factor.

Key Features:
✅ CPU Compatibility:
• Supports Intel LGA1200 socket for 10th and 11th Gen Core, Pentium, and Celeron processors

✅ Memory Support:
• 2 x DDR4 DIMM slots, up to 64GB
• Compatible with DDR4 memory speeds of 3200/2933/2666/2133 MHz

✅ Storage Options:
• 4 x SATA III 6Gbps interfaces for fast storage connectivity
• 1 x M.2 2280 NVMe PCIe 3.0 x4 interface for high-speed SSDs
• 1 x M.2 slot for WiFi connectivity

✅ Expansion Slots:
• 1 x PCIe 3.0 x16 for graphics cards and other expansion cards
• 1 x PCIe 3.0 x1 for additional expansion

✅ Audio & Networking:
• Realtek High-Fidelity Audio for immersive sound quality
• Realtek Gigabit Ethernet for reliable, high-speed internet connectivity

✅ Form Factor & I/O:
• M-ATX (215 x 165mm) for space-efficient builds

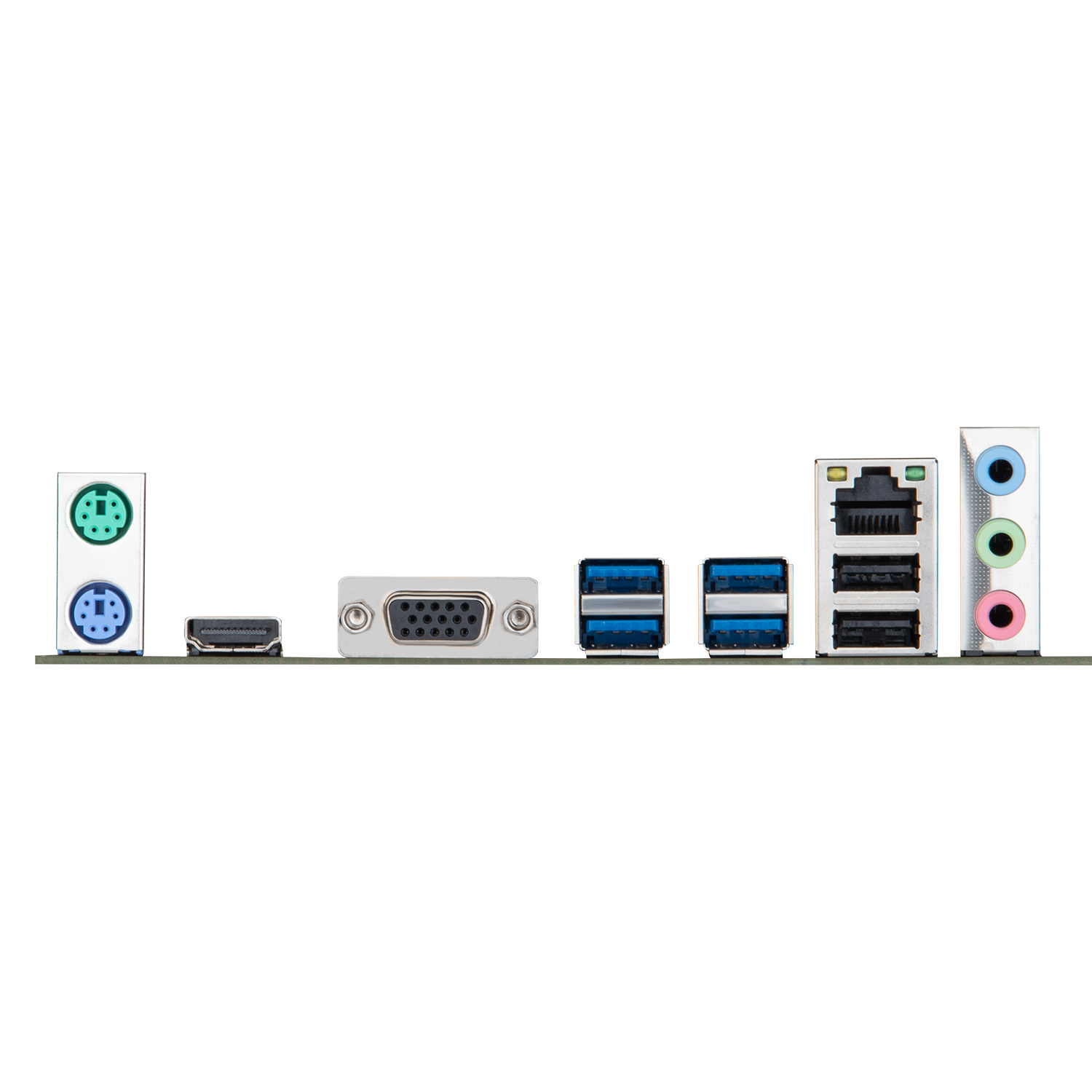

• Rear I/O includes 4 x USB 3.0, 2 x USB 2.0, HDMI, VGA, Network port, and 3-hole audio jack

✅ Power & Cooling:
• Power connections: 24-pin + 8-pin
• CPU_FAN and SYS_FAN headers for optimal cooling

✅ System Compatibility:
• Supports Windows 10 and Windows 11
• BIOS: AMI EFI BIOS for easy setup and updates
