Specifications of HUANANZHI H610M-VH Black Motherboard

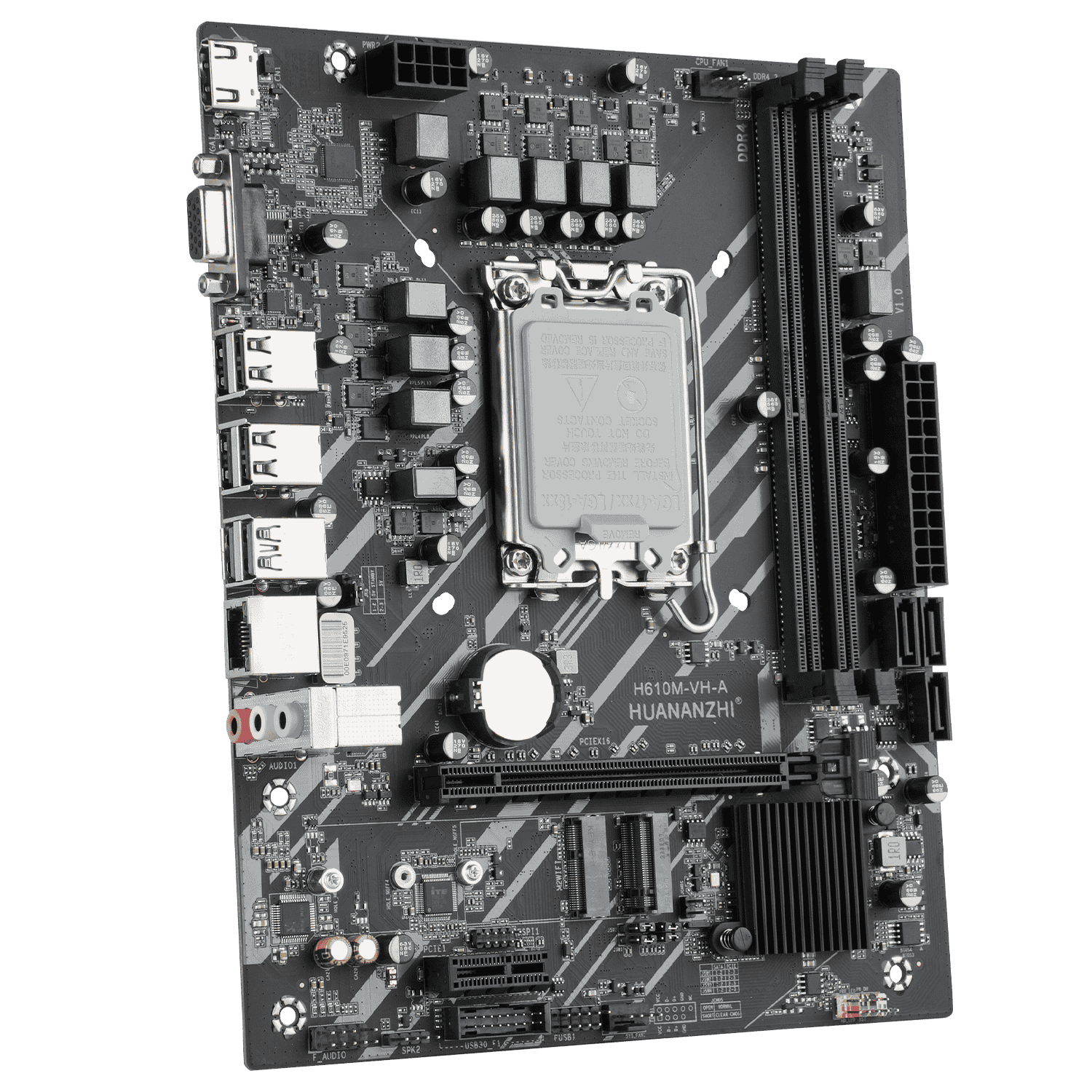

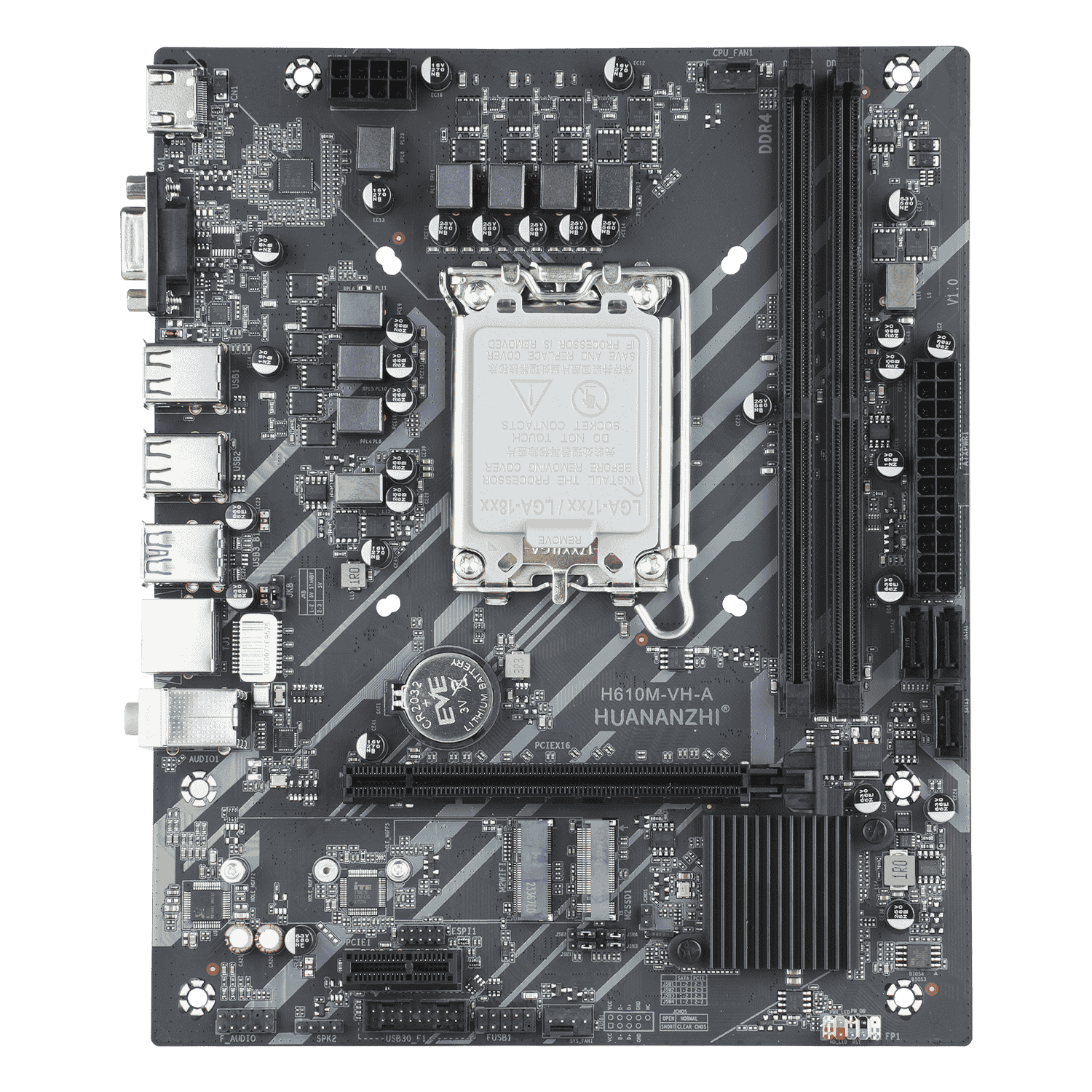

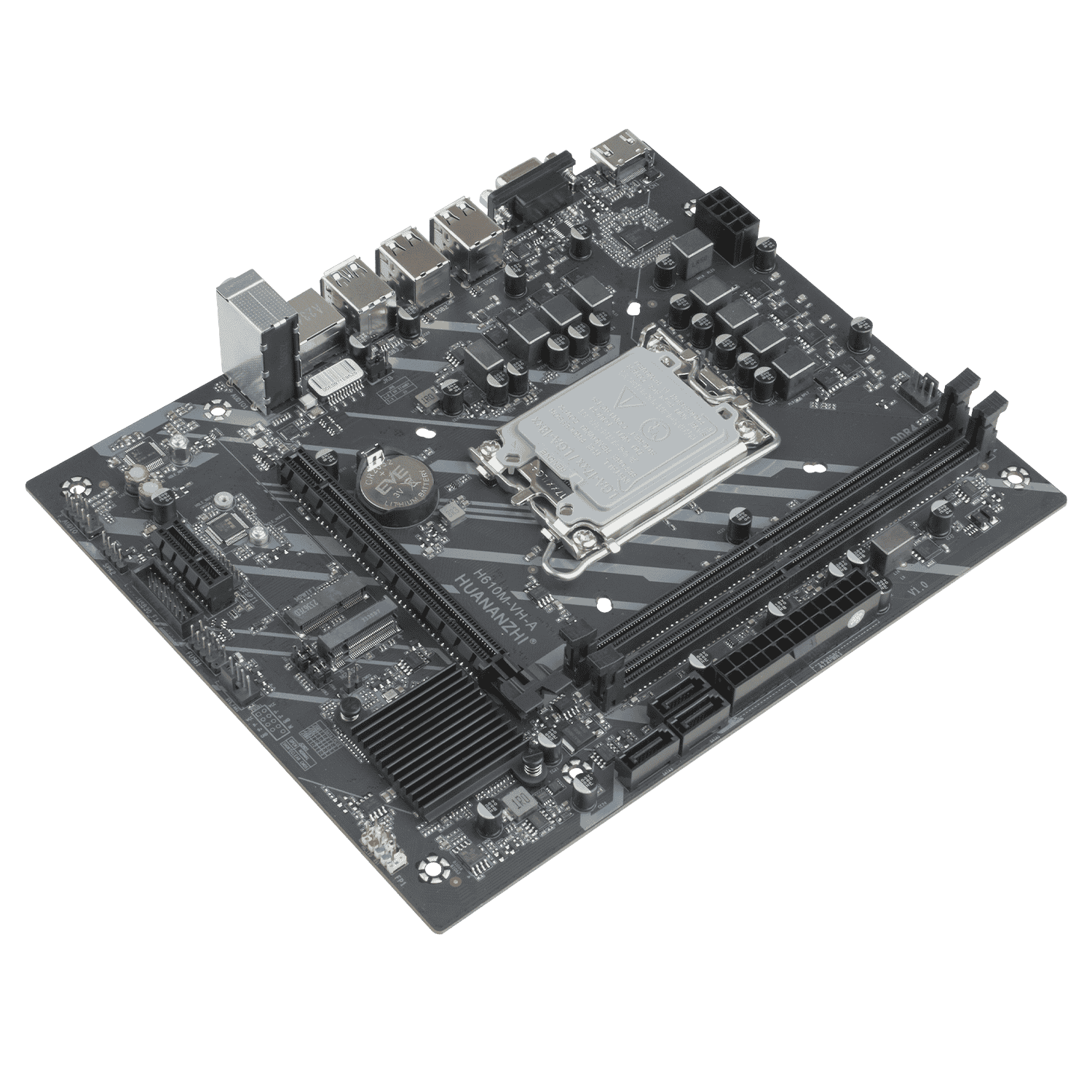

HUANANZHI H610M-VH Black Motherboard

Build a powerful and reliable system with the HUANANZHI H610M-VH Motherboard, designed for Intel's latest LGA1700 processors and packed with modern features for high-speed connectivity and smooth performance.

Key Features:

Chipset: Intel H610

CPU Socket: Supports Intel LGA1700 processors

Memory:

2 × DDR4 memory slots

Supports dual-channel DDR4 3200/2933/2666/2400MHz

Maximum memory support: 64GB

Storage Interface:

3 × SATA 3.0 ports (6Gbps)

Expansion Slots:

1 × PCIe 3.0 x16

1 × PCIe 3.0 x1

Expansion Interface:

1 × M.2 2280 NVMe PCIe X4 3.0 (32Gbps)

1 × M.2 WIFI slot

Audio:

Realtek High Definition Audio ALC897

Networking:

Realtek Gigabit Network Card RTL8111H

Power Interface: 24-Pin + 8-Pin connectors

Cooling Support:

1 × CPU_FAN PIN

1 × SYS_FAN PIN

Power Supply Design: 8-phase power supply for superior stability

PCB: 4-layer durable PCB

Dimensions:

220mm × 180mm (Micro-ATX Form Factor)

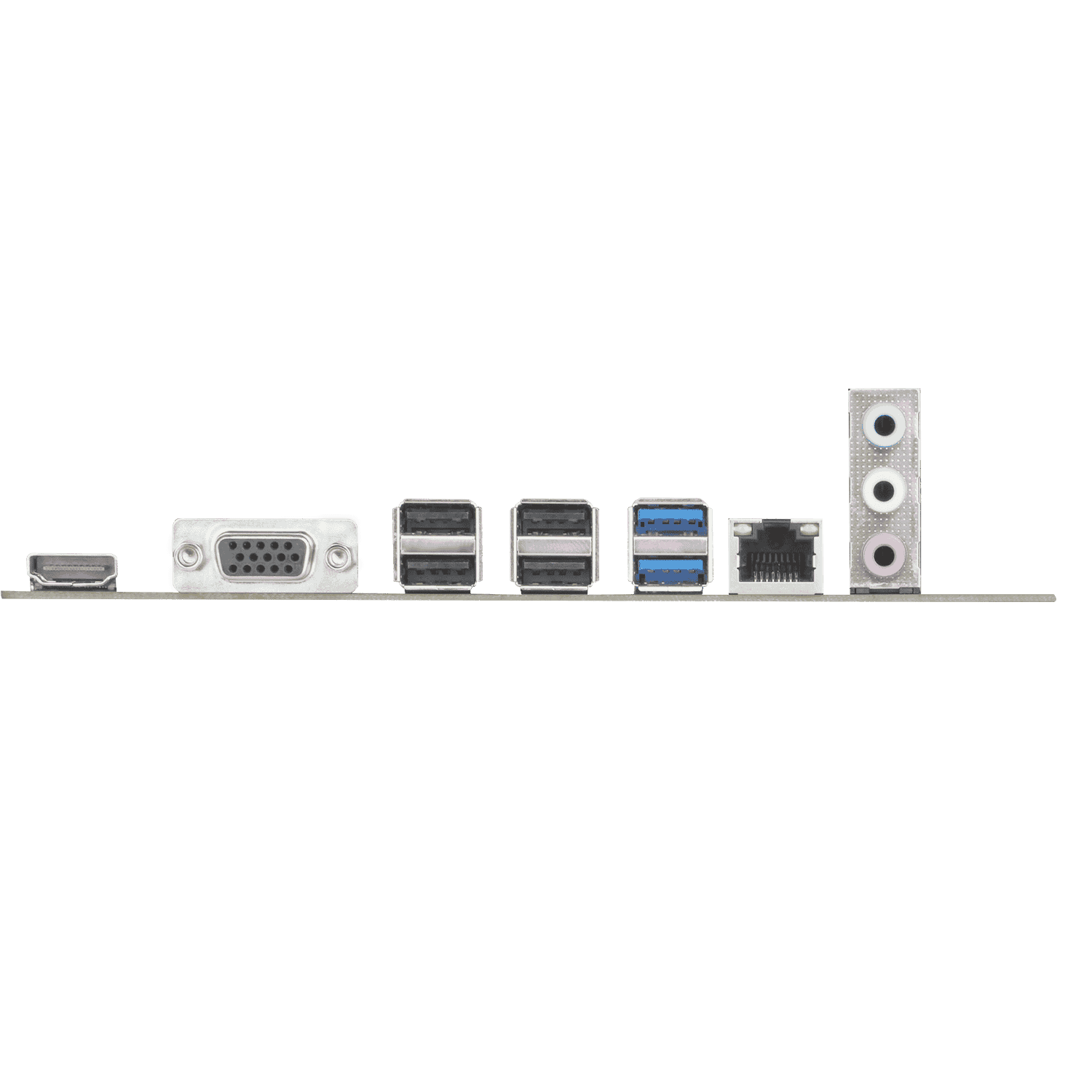

Rear I/O Ports:

4 × USB 2.0 ports (480Mbps)

2 × USB 3.2 ports (10Gbps)

1 × RJ45 Gigabit LAN port

1 × 3-hole audio interface

1 × VGA port

1 × HDMI 2.0 port

Front Panel Connectors:

1 × USB 2.0 PIN header (480Mbps)

1 × USB 3.2 PIN header (5Gbps)

1 × Front audio PIN header

1 × COM PIN header

1 × Power On/Restart PIN header

1 × Debug PIN header

Supported Operating Systems:

Windows 10

Windows 11

BIOS:

AMI UEFI BIOS for seamless system configuration and upgrades

What's in the Box:

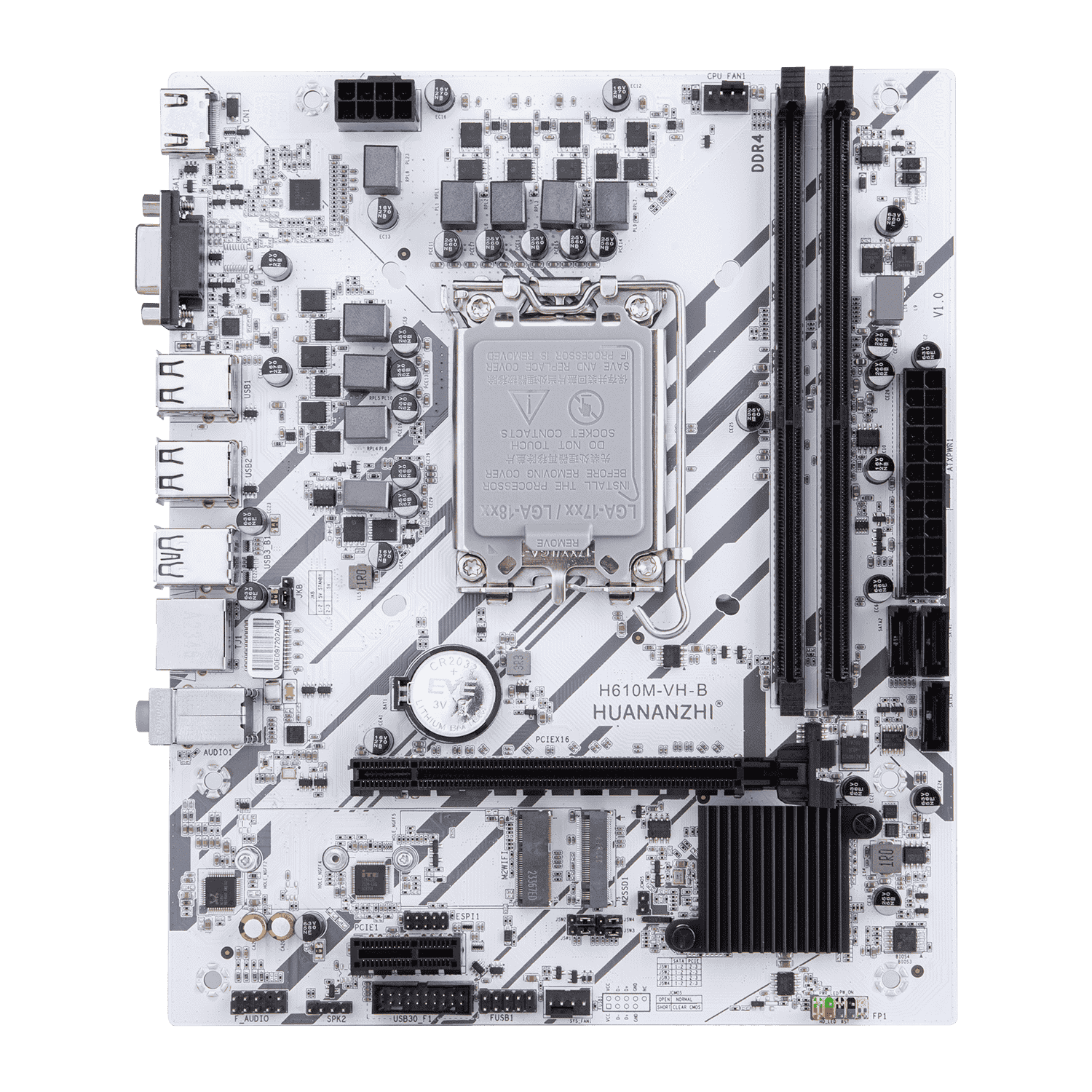

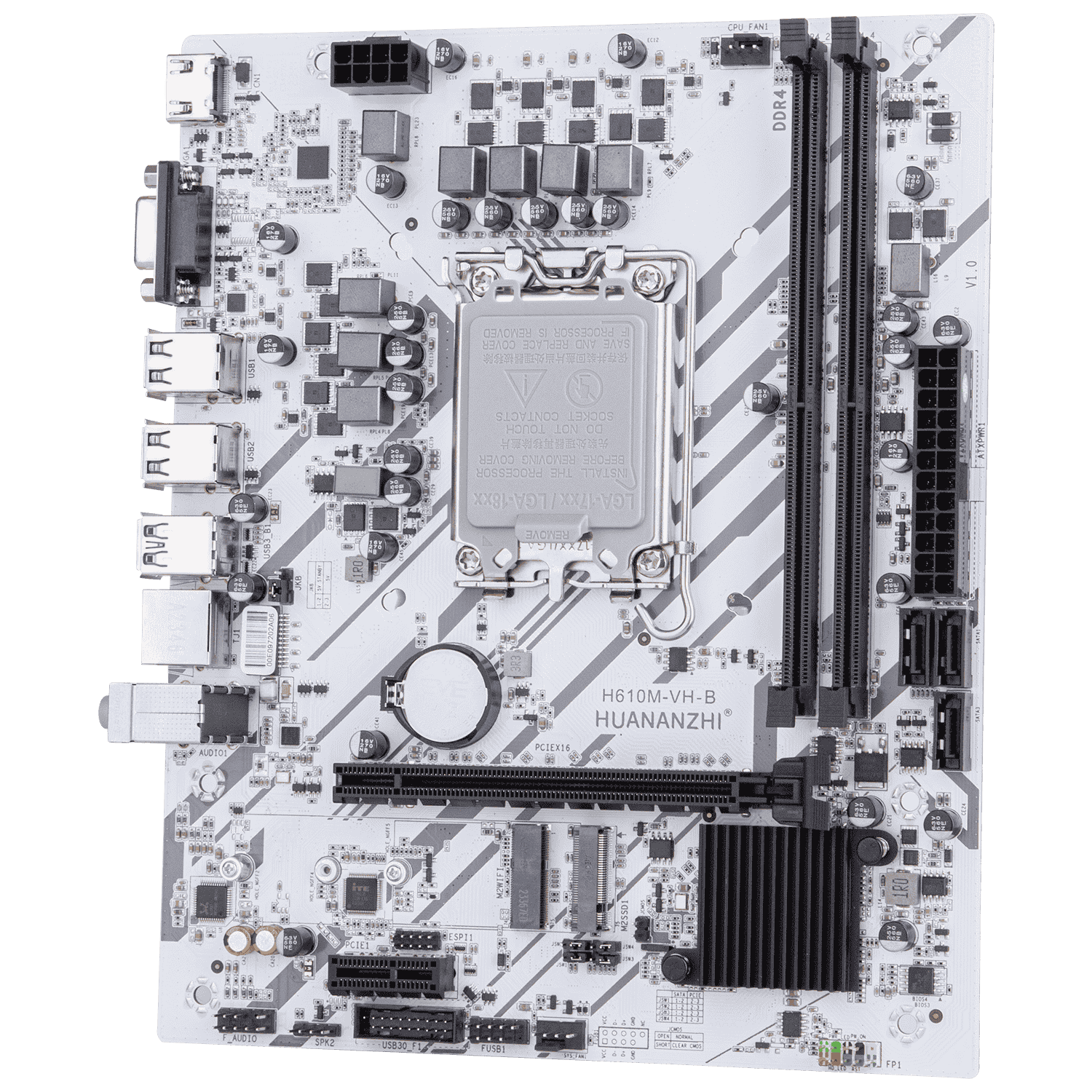

1 × HUANANZHI H610M-VH-A/B Motherboard

1 × SATA Cable
