Specifications of HUANANZHI H81 PLUS Motherboard

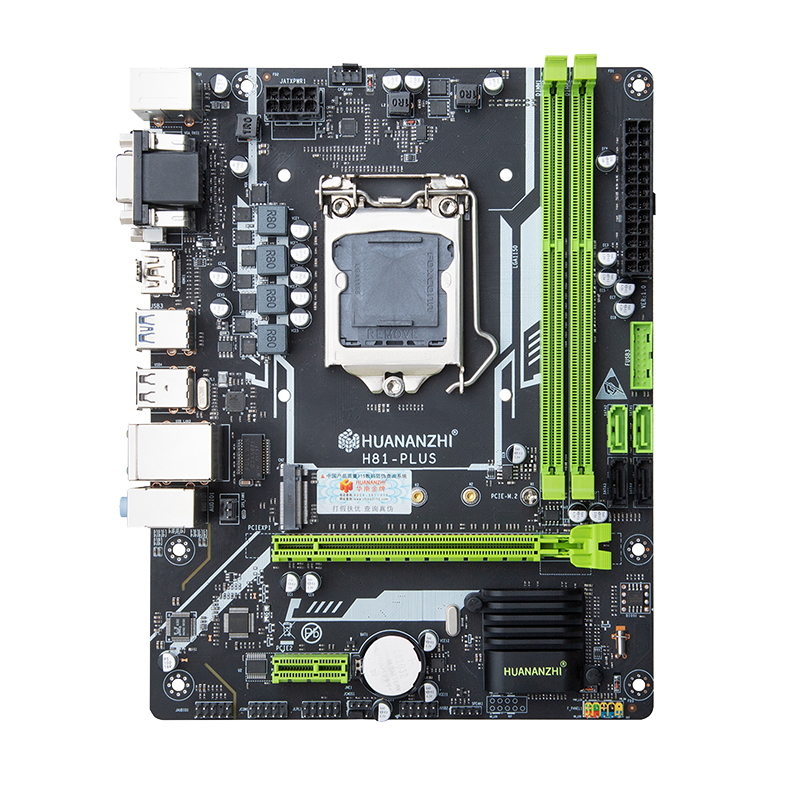

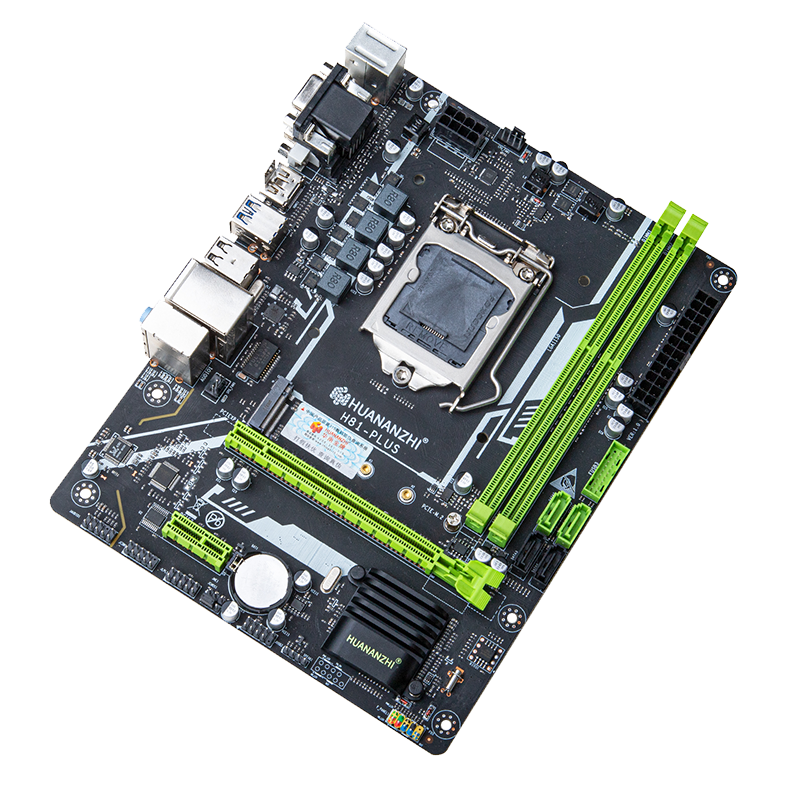

HUANANZHI H81 PLUS Motherboard

HUANANZHI H81 PLUS Motherboard
Experience stable performance and versatile connectivity with the HUANANZHI H81 PLUS Motherboard, crafted to support Intel LGA1150 processors and ideal for budget-friendly system builds.

Key Features:

Main Chipset: Intel H81

CPU Socket: Supports Intel LGA1150 CPUs

Memory:

2 × DDR3 memory slots

Supports dual-channel DDR3 1600/1333MHz

Maximum capacity: 16GB

Storage Interface:

2 × SATA 3.0 ports (6Gbps)

2 × SATA 2.0 ports (3Gbps)

Expansion Slots:

1 × PCI Express 3.0 x16

1 × PCI Express 2.0 x1

Expansion Interface:

1 × M.2 2280 PCIe X4 2.0 (20Gbps)

Audio: Built-in 5.1 channel sound card

Networking: Integrated Gigabit Ethernet

Power Interface: 24-Pin + 8-Pin connectors

Cooling Support:

1 × CPU_FAN PIN

1 × SYS_FAN PIN

Power Supply Design: 4-phase power supply for enhanced stability

PCB: 4-layer high-quality PCB

Dimensions:

220mm × 170mm (Micro-ATX Form Factor)

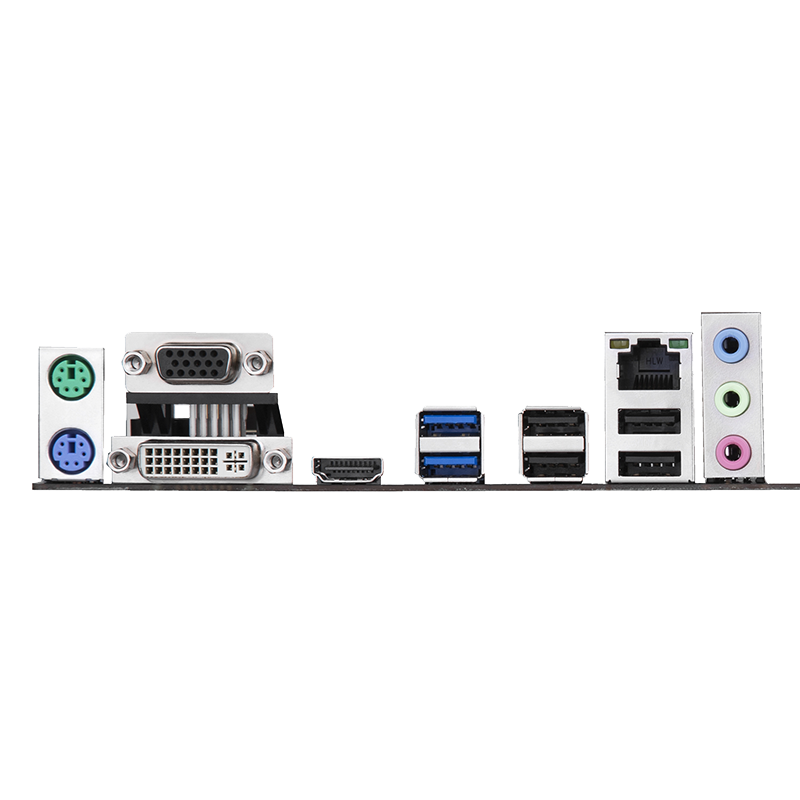

Rear I/O Ports:

1 × PS/2 Mouse and Keyboard port

4 × USB 2.0 ports

2 × USB 3.0 ports

1 × RJ45 Gigabit LAN port

1 × 3-hole audio interface

1 × VGA port

1 × HDMI port

1 × DVI port

Front Panel Connectors:

1 × USB 2.0 PIN header

1 × USB 3.0 PIN header (supports USB 2.0 speed)

1 × Front audio PIN header

1 × COM PIN header

Supported Operating Systems:

Windows 7

Windows 10

Windows 11

BIOS:

AMI UEFI BIOS for better compatibility and user experience

What's in the Box:

1 × HUANANZHI H81 PLUS Motherboard

1 × SATA Data Cable

1 × Warranty Card

1 × I/O Shield (Back Plate)
