Specifications of HUANANZHI X99-F8D PLUS Motherboard
| Model |
HUANANZHI X99-F8D PLUS Motherboard |
| Main chipset |
Intel C612 |
| CPU Socket |
Support Intel LGA2011-3 platform processor |
| Memory slot |
8 x DDR4 memory slot，Support server memory |
| Memory standard |
Support four channels DDR42400/2133/1866MHz Memory，Max support 512GB |
| Storage interface |
6 x SATA 3.0 6Gbps |
| Expansion Slots |
3 x PCI Express 3.0 x16 ，3 x PCI Express 3.0 x8 |
| Expansion interface |
2 x M.2 22110 NVME PCIE X4 3.0，1x M.2 2280 NVME PCIE X4 2.0 @NGFF SSATA 3.06Gb/s（An SSATA signal will be used） |
| Sound Track |
7.1 sound card |
| Network Card |
2 x Realtek RTL8125BG 2.5Gbps LAN |
| Power interface |
24PIN+8PIN+8PIN |
| FAN PIN |
2xCPU_FAN PIN，4xSYS_FAN PIN |
| power supply |
8+8-phase power supply |
| PCB layers |
12-layer PCB |
| Dimension |
305*330MM E-ATX |
| Rear panel interface |
4xUSB2.0 Interface，4xUSB3.0 Interface，2x Network card interface，1x3-hole audio interface |
| Front panel interface |
2 x USB2.0 PIN，1 x USB3.0 PIN，1 x Front audio pin，1 x COM PIN，1 xPower-on pin，1 x 14PIN TPM，1xMain board buzzer，1 xDiagnostic card，1 xStart/restart button |
| Support system |
Windows7 Windows10 Windows11 |
| BIOS |
AMI UEFI BIOS |
| Warrenty |
2-Years Warranty |
| Warranty Policy |
No Warranty For Physical & Burn Damage |

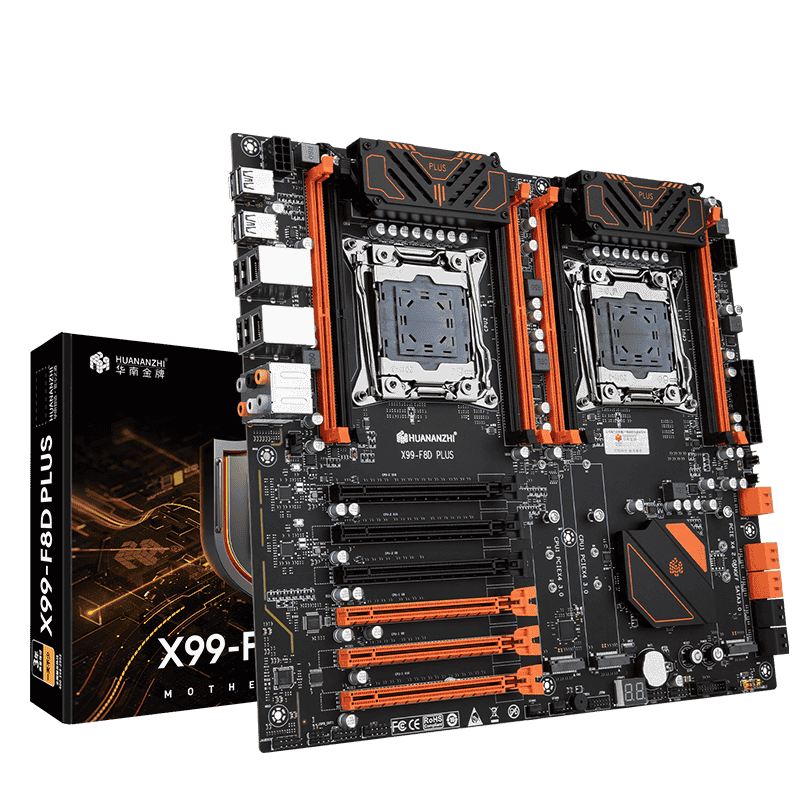

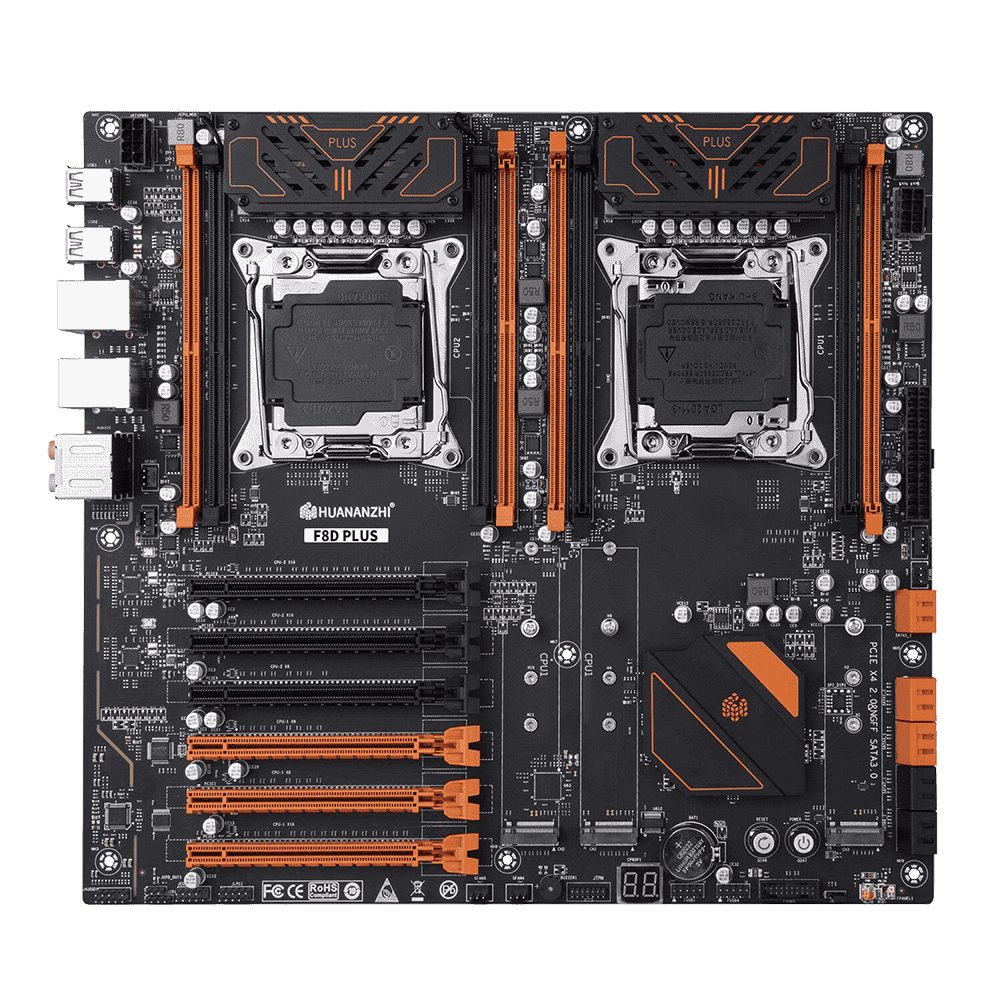

HUANANZHI X99-F8D PLUS Motherboard
HUANANZHI X99-F8D PLUS Motherboard – High-Performance E-ATX Server-Grade Workstation Board for Intel LGA 2011-3 CPUs
Experience powerful and stable performance with the HUANANZHI X99-F8D PLUS, a feature-rich E-ATX motherboard designed for professional workstations, gaming rigs, and server builds. Built on the Intel C612 chipset, this motherboard supports Intel LGA2011-3 processors, including Xeon E5 V3/V4 CPUs, delivering enterprise-grade computing power at an excellent value.
Key Features:
✅ CPU Support: Compatible with Intel LGA 2011-3 platform processors
✅ Memory Capacity: 8 x DDR4 DIMM slots supporting up to 512GB ECC/server memory (Quad-channel, DDR4 2400/2133/1866 MHz)
✅ Storage Options:
• 6 x SATA III 6Gbps ports
• 2 x M.2 22110 NVMe PCIe 3.0 x4
• 1 x M.2 2280 (PCIe 2.0 x4/NGFF SATA SSATA 6Gbps)
✅ Expansion Slots:
• 3 x PCIe 3.0 x16
• 3 x PCIe 3.0 x8 – ideal for multi-GPU setups and professional add-on cards
✅ Connectivity:
• Dual 2.5Gbps LAN (Realtek RTL8125BG)
• Rear I/O: 4 x USB 3.0, 4 x USB 2.0, 3-port audio jack, dual LAN
• Onboard: USB headers, audio, TPM, COM, debug diagnostic card, power/restart buttons
✅ Audio & Power:
• 7.1 HD audio support
• Robust 8+8-phase power delivery
• 12-layer PCB for enhanced stability
✅ Form Factor: E-ATX (305 x 330mm) – suitable for high-end workstation chassis
✅ Supported OS: Windows 7, 10, and 11
✅ Packaging Includes: Motherboard, 2 x SATA cables, I/O shield, warranty card
Whether you're building a server, content creation powerhouse, or a powerful multi-GPU workstation, the HUANANZHI X99-F8D PLUS offers outstanding flexibility, stability, and expandability for demanding applications.
