Specifications of Wacom DTK-2420 CINTIQ PRO 24 PEN Graphic Tablet
| Screen Size: |
23.6 inches (59.94 cm) |
| Resolution: |

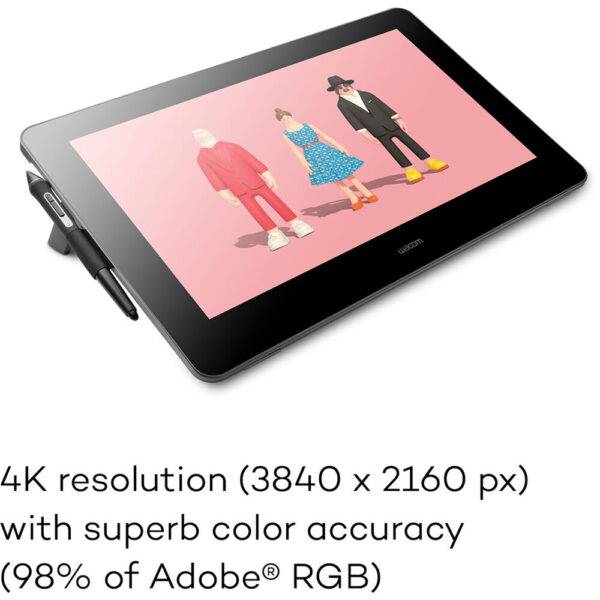

4K UHD (3840 x 2160 pixels) |
| Aspect Ratio: |
16:9 |
| Color Accuracy: |
99% Adobe RGB |
| Color Depth: |
1.07 billion colors (10-bit color) |
| Brightness: |
235 cd/m² (minimum, duty 100%) |
| Contrast Ratio: |
1000:1 |
| Viewing Angle: |
176° (88°/88° H and V) |
| Response Time: |
14 ms |
| Active Area: |
522 x 294 mm (20.55 x 11.57 inches) |
| Parallax: |
Virtually none |
| Tilt Range: |
±60 degrees |
| Tilt Recognition: |
±60 levels |

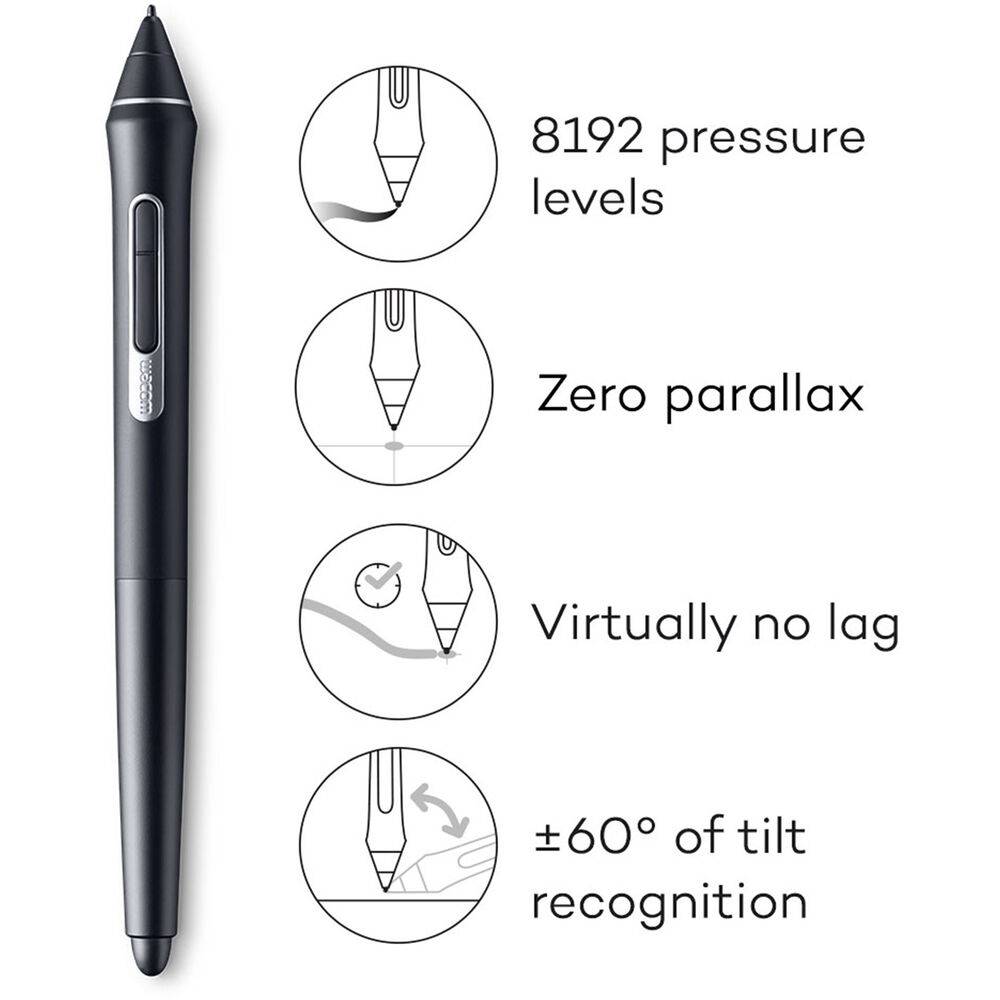

| Pen Buttons: |
Tip switch, 2 side switches, eraser |
| Pen Nibs: |
10 (6 standard, 4 felt) stored in the pen stand |
| Grip: |
Latex-free silicone rubber |
| Pen Technology: |
EMR (Electro-Magnetic Resonance) |
| Included Remote: |
ExpressKey Remote with rechargeable Li-ion battery |
| CPU Options |
Intel Xeon (varies depending on model |
| GPU Options: |
NVIDIA Quadro (varies depending on model) |
| Memory: |
User-upgradable, up to 32 GB RAM |
| Storage: |
User-upgradable SSD |
| USB Ports: |
1 x USB-C port (with DisplayPort Alternate Mode support) 2 x USB-A ports (one for ExpressKey Remote dongle) |
| Video Ports: |
1 x HDMI 2.0 1 x DisplayPort (DP) |
| Power Supply: |
Input: 100 to 240 VAC, 50/60Hz Output: 19.5V / 9.23A Power ON: Max. 100 W Power Sleep Mode: ≤2.0 W Power OFF Mode: ≤0.5 W |
| Lock Slot: |
Kensington Lock Port (lock sold separately) |
| Certifications: |
VCCI Class B, FCC Part 15 (Subpart B & C), CE, IC ICES-003 & 210, RCM, KCC, BSMI, C-Tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS |
| Operating Systems: |
Windows 7 or later (latest service pack/build) macOS 10.10 or later (latest update) |
| Connectivity Requirements: |
USB-C with DisplayPort Alternate Mode (UHD) OR Mini DisplayPort/DisplayPort (UHD) + USB-A OR HDMI 2.0 (UHD) + USB-A |
| Internet: |
Required for driver download |
| Tablet Size: |
677 x 394 x 47 mm (26.65 x 15.5 x 1.9 inches) |
| Weight: |
Varies by configuration |
| Warranty |
1-Year Warranty (standard; may vary by region) |
Wacom DTK-2420 CINTIQ PRO 24 PEN Graphic Tablet
Wacom DTK-2420 CINTIQ PRO 24 PEN Graphic Tablet Wacom DTK-2420 Graphic Tablet is with the Wacom Cintiq Pro 24 which gives you absolute harmony with your work. It has Premium 4K screen with world class color performance, and virtually no parallax, enhance every creative breakthrough. This tablet is built in 4K resolution (3840 x 2160 px) is packed into a 24†LCD display with superb color accuracy (99% of Adobe RGB). You can use it in greatest artwork, design or photographic projects. This graphics tablet is features with high-power processors, including Intel Xeon (depending on model), NVIDIA Quadro graphics, and user-upgradable SSDs and memory (up to 32GB). It's Interactive display has 677 x 394 x 47 mm (26.65 x 15.5 x 1.9 in) size, 59.94 cm / 23.6 in size screen, maximum 1.07 billion colors (10 bits color). The CINTIQ PRO 24 PEN Graphic Tablet has 16:9 Aspect Ratio, 176° (88°/88°) H, (88°/88°) V Viewing Angle, 1000:1 Contrast Ratio, 235 cd/m2 (min, duty 100%) Brightness, 14ms Response, 522 X 294 mm (20.55 X 11.57 in) Active Area. Here the Tilt Range is 60 degrees with ±60 levels Tilt Recognition. In this tablet, it has Tip switch, 2 side switches, eraser,10 (6 standard, 4 felt) in pen stand and Latex-free silicone rubber Grip. The Radial Menu, Precision Mode, Display Toggle, Dedicated Pan, Scroll, Zoom, Brush Size are included in this graphics tablet. This tablet has different types of connection port like 4 x USB3 ports, 1 x USB C port , 1 x HDMI2.0 port, 1 x DP port, 2 USB-A Ports (one for ExpressKey Remote dongle), 100 to 240 VAC, 50/60HZ input Power Supply, 19.5V / 9.23A Output Power Supply. Here the Power ON mode is Max.100 W, Power sleep mode is 2.0 W or lower, Power OFF mode is 0.5 W or lower with using Rechargable Li-ion battery on include ExpressKey Remote Rechargable Li-ion battery on include ExpressKey Remote and Kensington Lock Port (lock purchased separately). This exclusive graphics tablet has VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS certifications.It is compitable with Windows 7 or later (latest service pack/build) and OS X, 10.10, or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download for Mac with providing 01 year of warranty.
